10mm | 24V | 128LEDs | 15W | 62.5cut | #7923 | 2835 High Light Efficacy PU LED Strip Light
- High-efficiency LEDs, providing professional linear lighting effect.
- PU potting RGB LED Strip utilizes polyurethane potting as a waterproofing method, offering excellent waterproof performance.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F28D64V24-7923-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
128 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
15W/m |
| Lumen/m (max.) |
1929 lm/m @4000K,15W |
| Lumen/W (max.) |
129 lm/W @4000K,15W |
| Color |
White |
| CRI |
Ra ≥90 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
8mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |

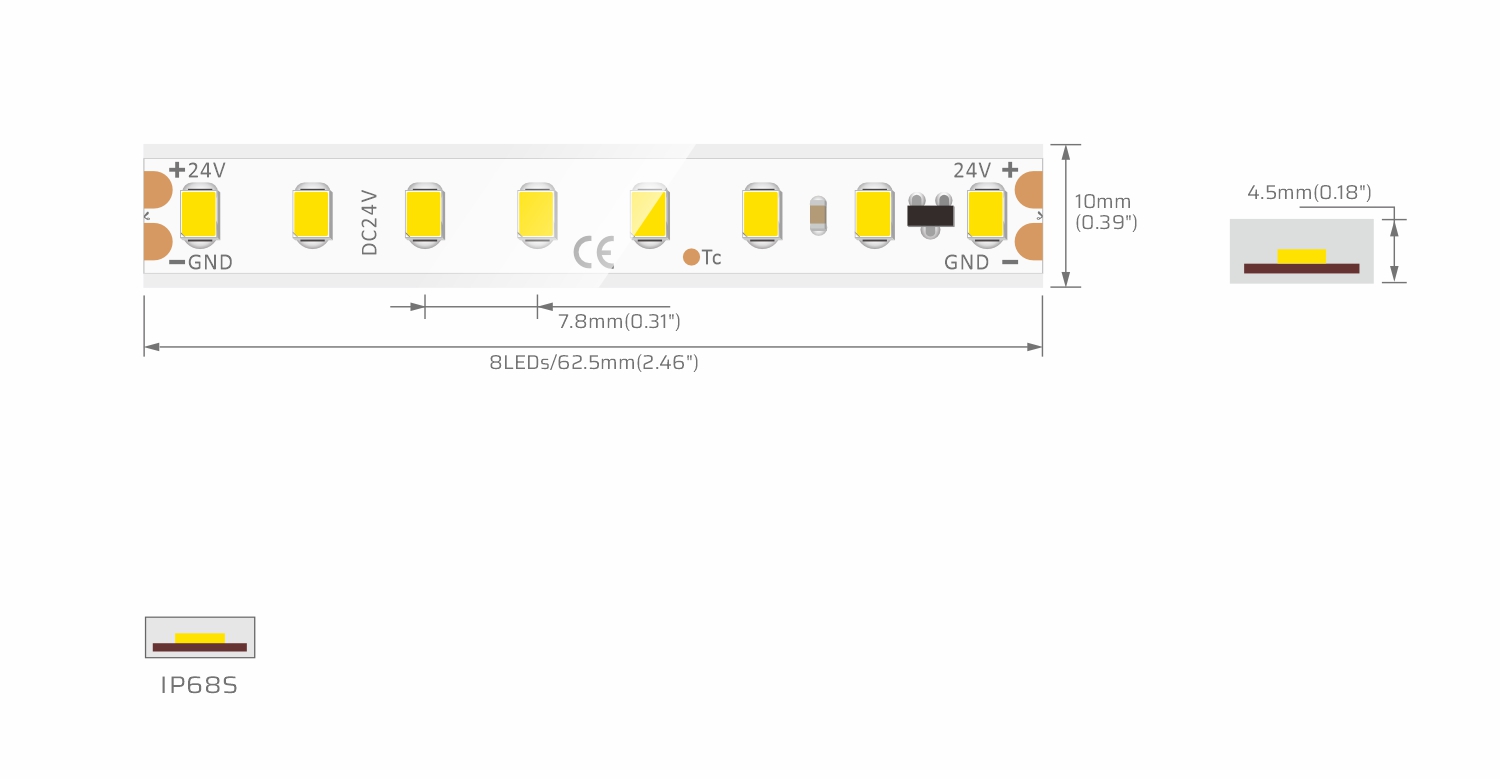

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 8LEDs/62.5mm(2.460′′)
LED Spacing: 7.8mm(0.307′′)
Width:10mm(0.394′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 9.6W/m | Ra≥90 | SWW | 1800K | 953 | 99 | F |
| SWW | 2300K | 1062 | 111 | E | ||
| WW | 2700K | 1149 | 120 | E | ||
| WW | 3000K | 1209 | 126 | E | ||
| WW | 3500K | 1231 | 128 | E | ||
| NW | 4000K | 1261 | 131 | E | ||
| NW | 5000K | 1260 | 131 | E | ||
| PW | 6500K | 1209 | 126 | E | ||
| 12W/m | Ra≥90 | SWW | 1800K | 1181 | 98 | F |
| SWW | 2300K | 1316 | 110 | E | ||
| WW | 2700K | 1423 | 119 | E | ||
| WW | 3000K | 1498 | 125 | E | ||
| WW | 3500K | 1525 | 127 | E | ||
| NW | 4000K | 1561 | 130 | E | ||
| NW | 5000K | 1560 | 130 | E | ||
| PW | 6500K | 1497 | 125 | E | ||
| 15W/m | Ra≥90 | SWW | 1800K | 1459 | 97 | F |
| SWW | 2300K | 1625 | 108 | F | ||
| WW | 2700K | 1758 | 117 | E | ||
| WW | 3000K | 1851 | 123 | E | ||
| WW | 3500K | 1884 | 126 | E | ||
| NW | 4000K | 1929 | 129 | E | ||
| NW | 5000K | 1928 | 129 | E | ||
| PW | 6500K | 1849 | 123 | E |
Product Downloads
Specification
Testing Report
Certificate
Product Accessories
No accessories for this product now！
