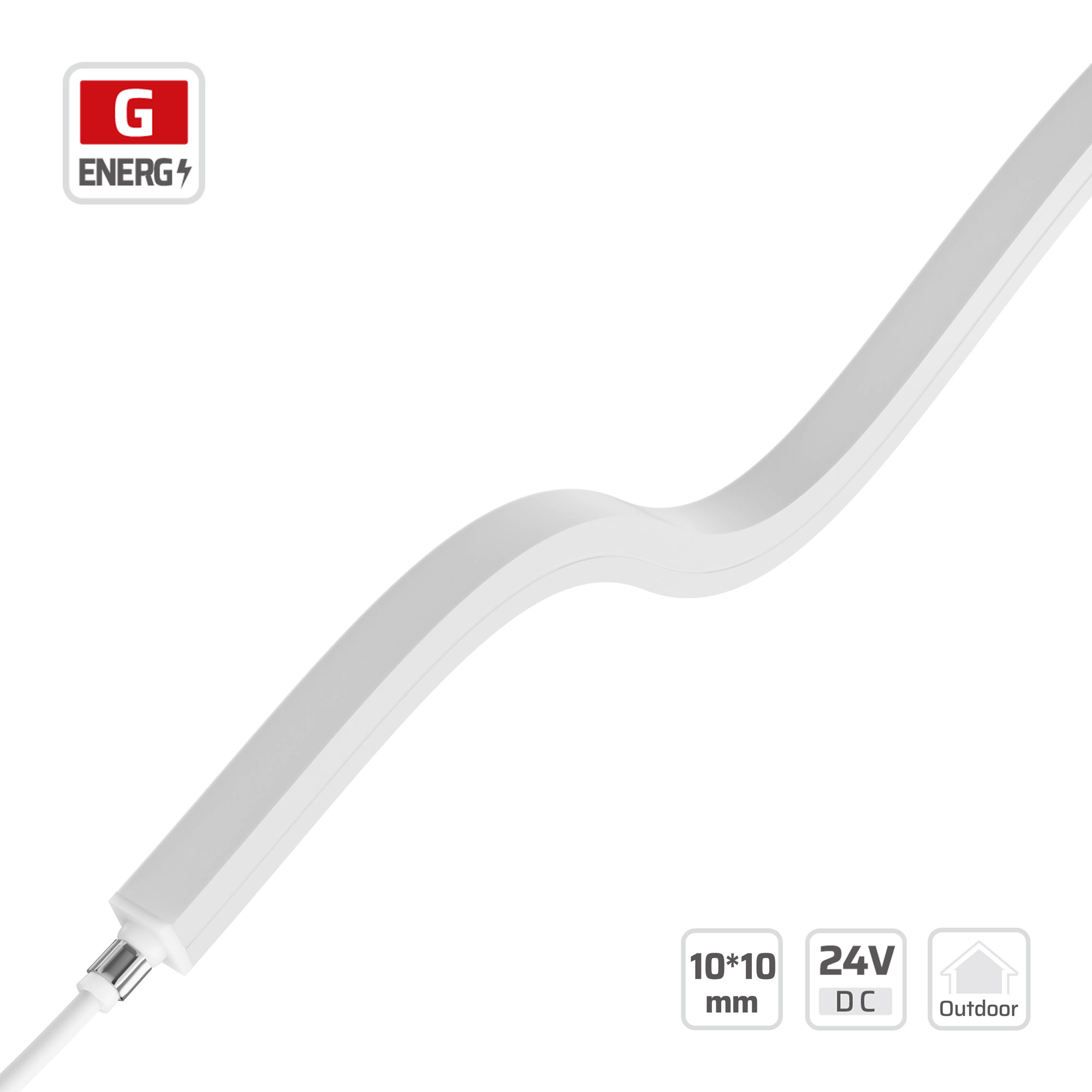

10*10mm | 24V | 120LEDs | 9.6W | 50mm/cut | #1010T-EE | 1010 Silicone Flexible Neon Light

  • 10x10mm miniaturized design, ultra-high flexibility, adapting to complex installation environments.
  • Full encapsulation protection with high resistance: salt, water, UV, abrasion, and chemical corrosion resistant.
  • High-performance silicone material with stable molecular structure, ensuring no discoloration or aging during long-term use.
  • Precision manufacturing process, ensuring uniform light distribution and minimizing light dark zones.
  • Multi-angle bending performance, freely shapeable, meeting various creative lighting requirements.
  • Widely applicable in indoor and outdoor scenarios: architectural contours, landscape decoration, commercial displays, artistic lighting.

Technical Details

Part No.

DL-NF28C60V24-1010T-EE-*

SMD Type

2835 SMD

LED Qty

120 LEDs/m

Voltage

DC 24V

Power Option

9.6W/m

Lumen/m (max.)

593 lm/m @4000K

Lumen/W (max.)

62 lm/W @4000K

Color

White

CRI

Ra ≥80

,

Ra ≥90

,

Ra ≥95

PCB Width

8mm

Beam Angle

120°

IP Process

IP67

Warranty

3 years

Related Specifications

Length(max.): 5M(16.4′)

Cutting Unit: 6LEDs/50mm(1.97′′)

LED Spacing: 8.334mm(0.33′′)

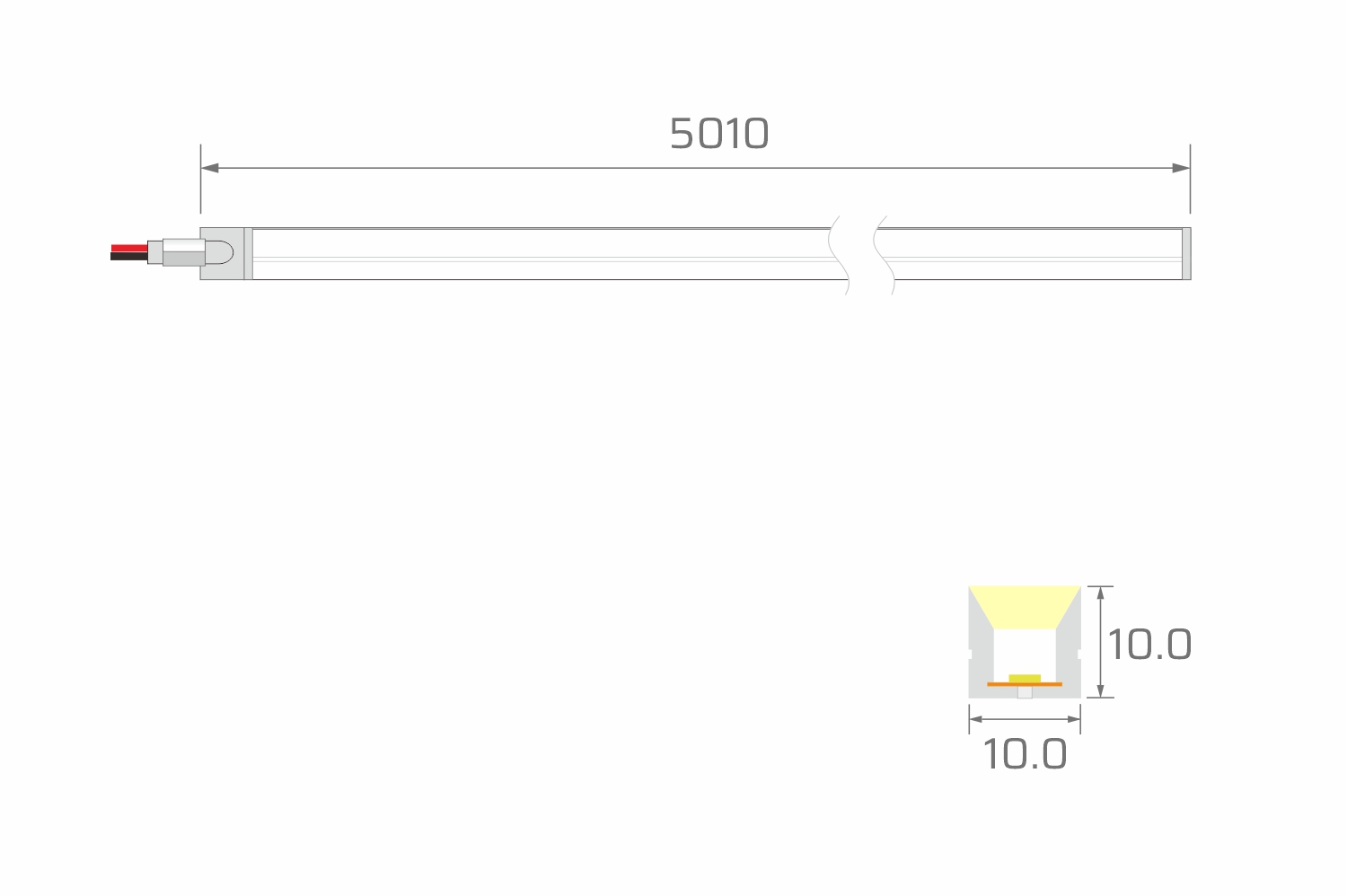

Size: 10x10mm

Min. Bend: Φ60mm(2.36′′)

Copper foil: 3oz

Lifetime: 50000h

Certified: CE/RoHS

EMC compliance: EN 55015

Product Photo-electric Parameters

Power CRI Color Color Temperature LM/m LM/W Erp
9.6W/m Ra≥80 SWW 1800K 567 59 G
WW 2700K 652 68 G
WW 3000K 409 74 G
NW 4000K 743 77 G
PW 6500K 674 70 G
Ra≥90 SWW 1800K 448 47 G
WW 2700K 541 56 G
WW 3000K 569 59 G
NW 4000K 593 62 G
PW 6500K 568 59 G
FS WW 2700K 438 46 G
WW 3000K 463 48 G
WW 3500K 476 50 G
NW 4000K 489 51 G
