10mm | 24V | 544LEDs | 15W | 29.412cut | #16662-N | 1515 Ultra Density LED Strip Light
- Uses 1515 SMD LEDs with an ultra-high-density design, packing 544 LEDs per meter.
- The ultra-high-density LED layout delivers an exceptionally smooth and refined light effect.
- Premium LED chips ensure long lifespan and stable performance.
- Compatible with multiple dimming methods, including PWM, DALI, and 0-10V, to meet various dimming needs.
- Perfect for applications demanding ultra-high brightness and uniformity, such as high-end commercial lighting, exhibition displays, and intricate decorative lighting.
Technical Details
| Part No. |
DL-F15A272V24-16662-N-* |
|---|---|
| SMD Type |
1515 SMD |
| LED Qty |
544 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
15W/m |
| Lumen/m (max.) |
2189 lm/m @4000K，15W |
| Lumen/W (max.) |
146 lm/W @4000K，15W |
| Color |
White |
| CRI |
Ra ≥90 |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 ,IP54 ,IP65 ,IP67 ,IP68 |
| Warranty |
3 years |

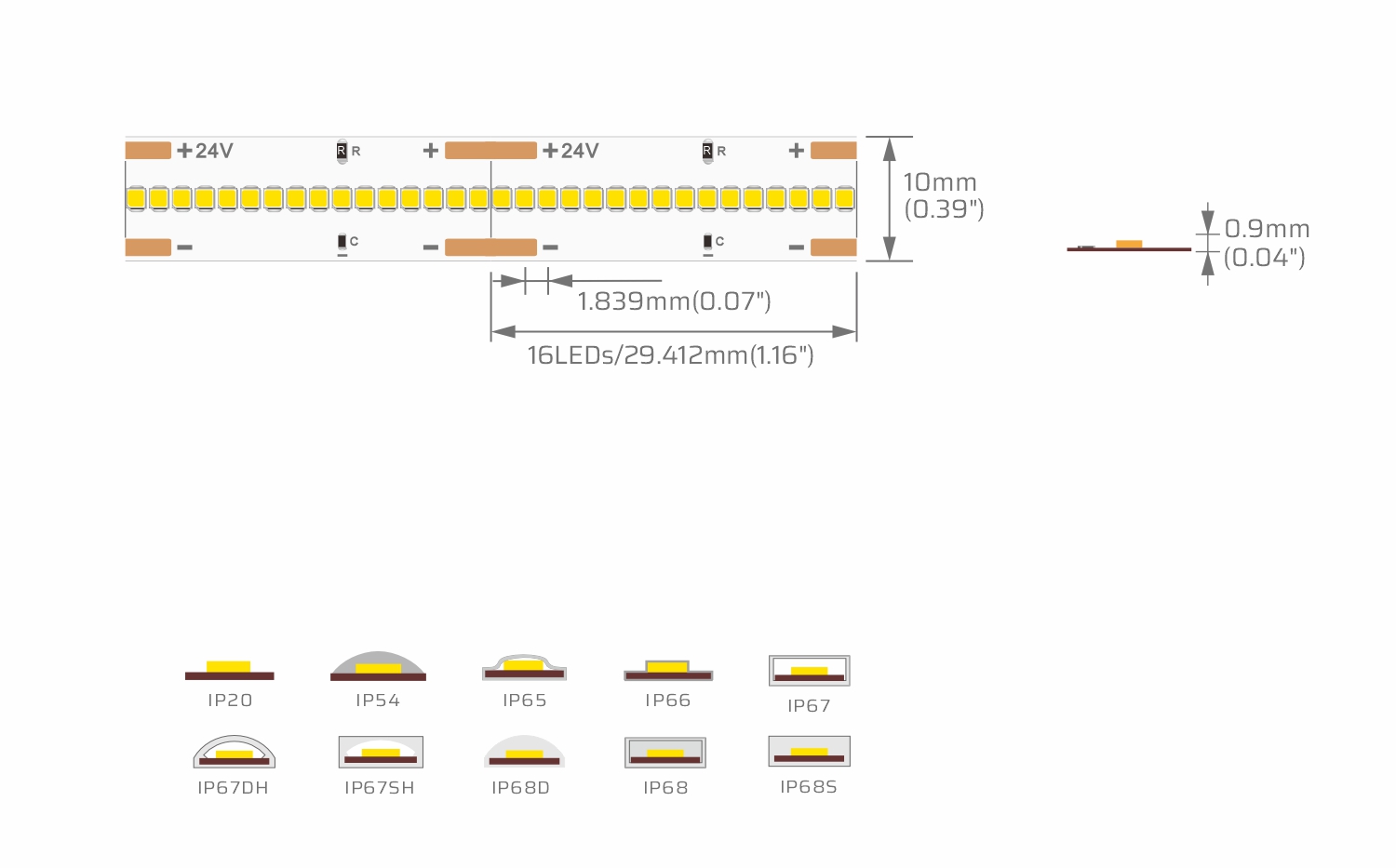

Related Specifications
Length(max.): 5M(16.404′)/roll
Cutting Unit: 16LEDs/29.412mm(1.16′′)
LED Spacing: 1.839mm(0.072′′)
LED Height: 0.9mm(0.035′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 15W/m | Ra≥90 | SWW | 1800K | 1655 | 110 | F |
| WW | 2700K | 1995 | 133 | E | ||
| WW | 3000K | 2010 | 140 | D | ||
| NW | 4000K | 2189 | 146 | D | ||
| PW | 6500K | 2099 | 140 | D | ||
| FS | WW | 2700K | 1617 | 108 | F | |
| NW | 3000K | 1707 | 114 | E | ||
| NW | 3500K | 1759 | 117 | E | ||
| PW | 4000K | 1807 | 121 | E |
