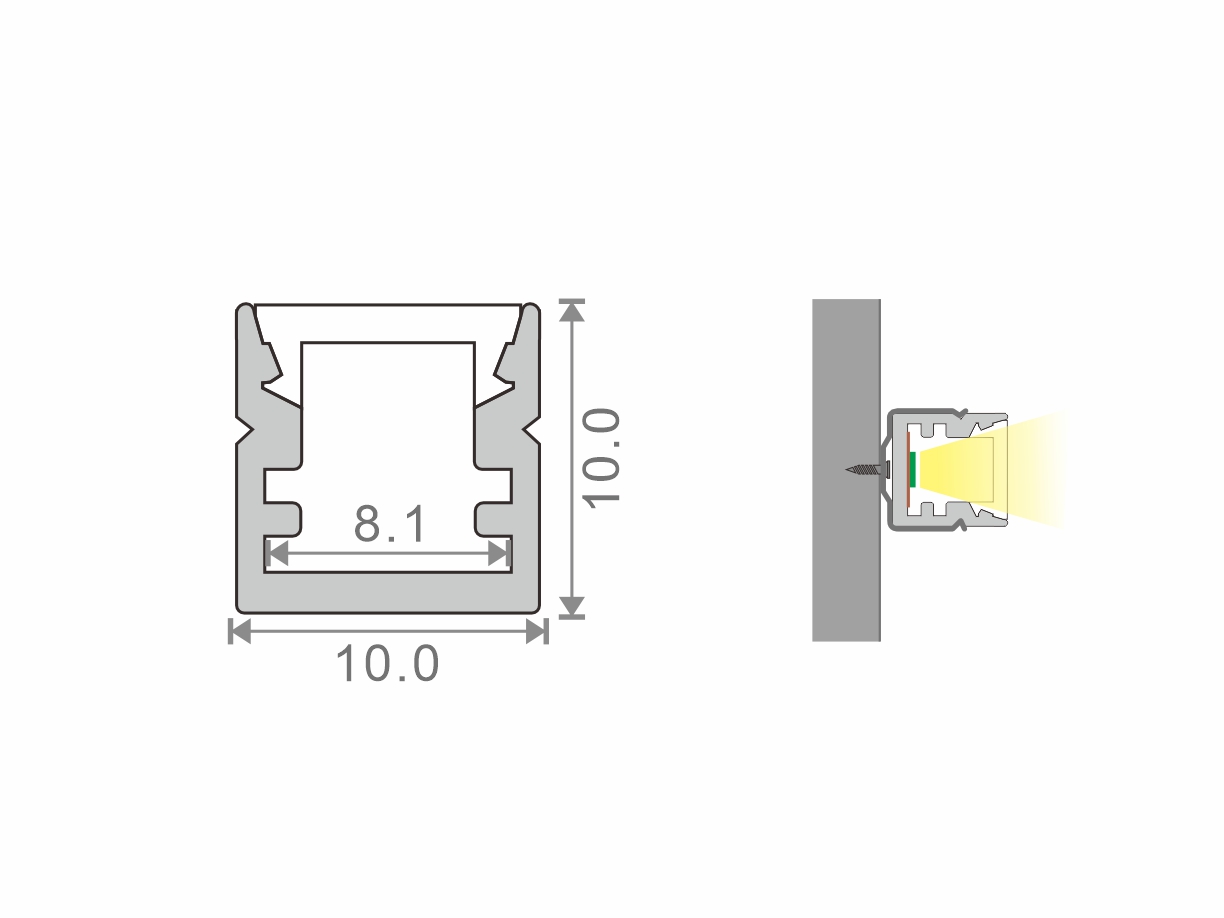

10×10mm LED Strip Channel

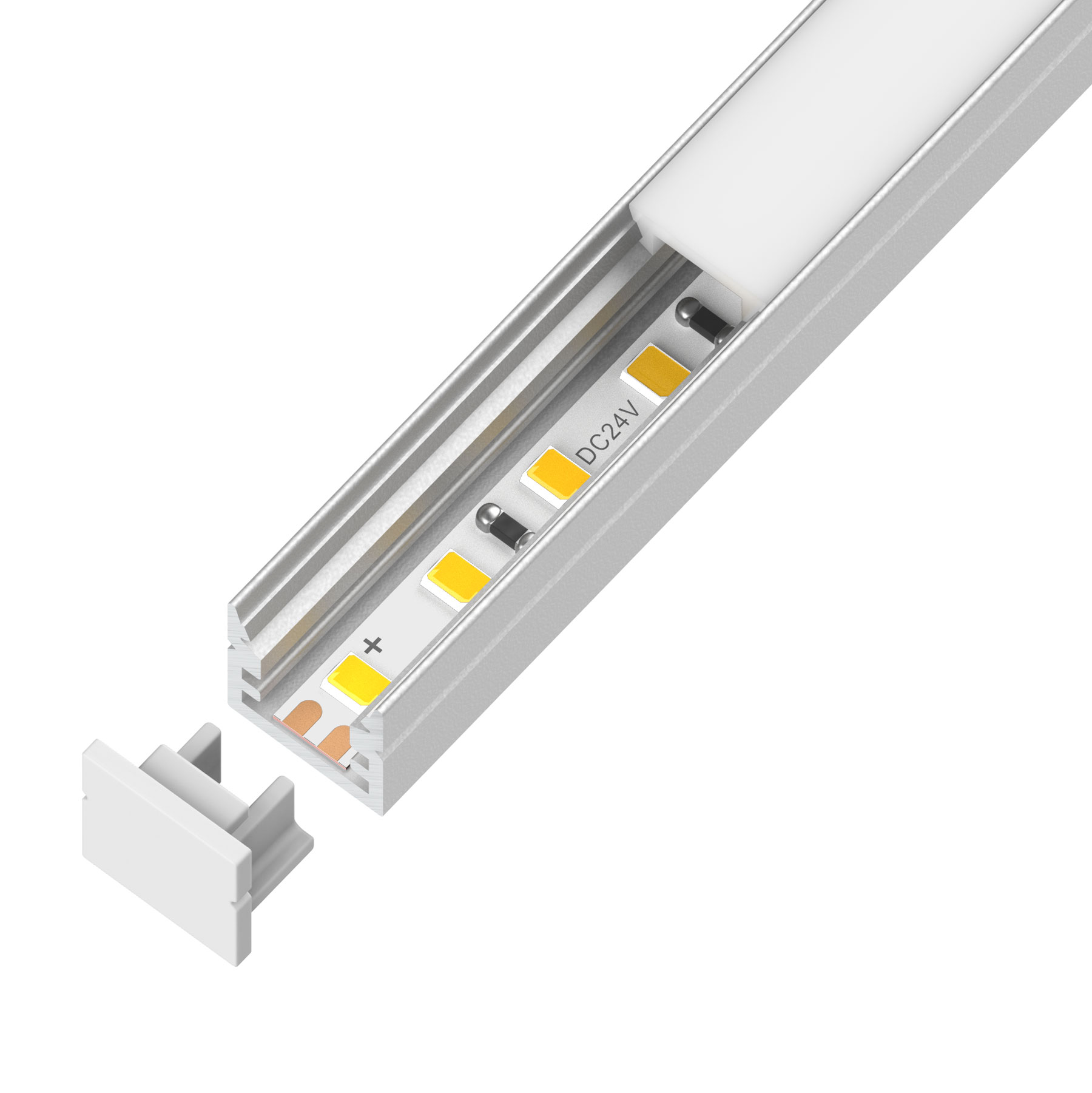

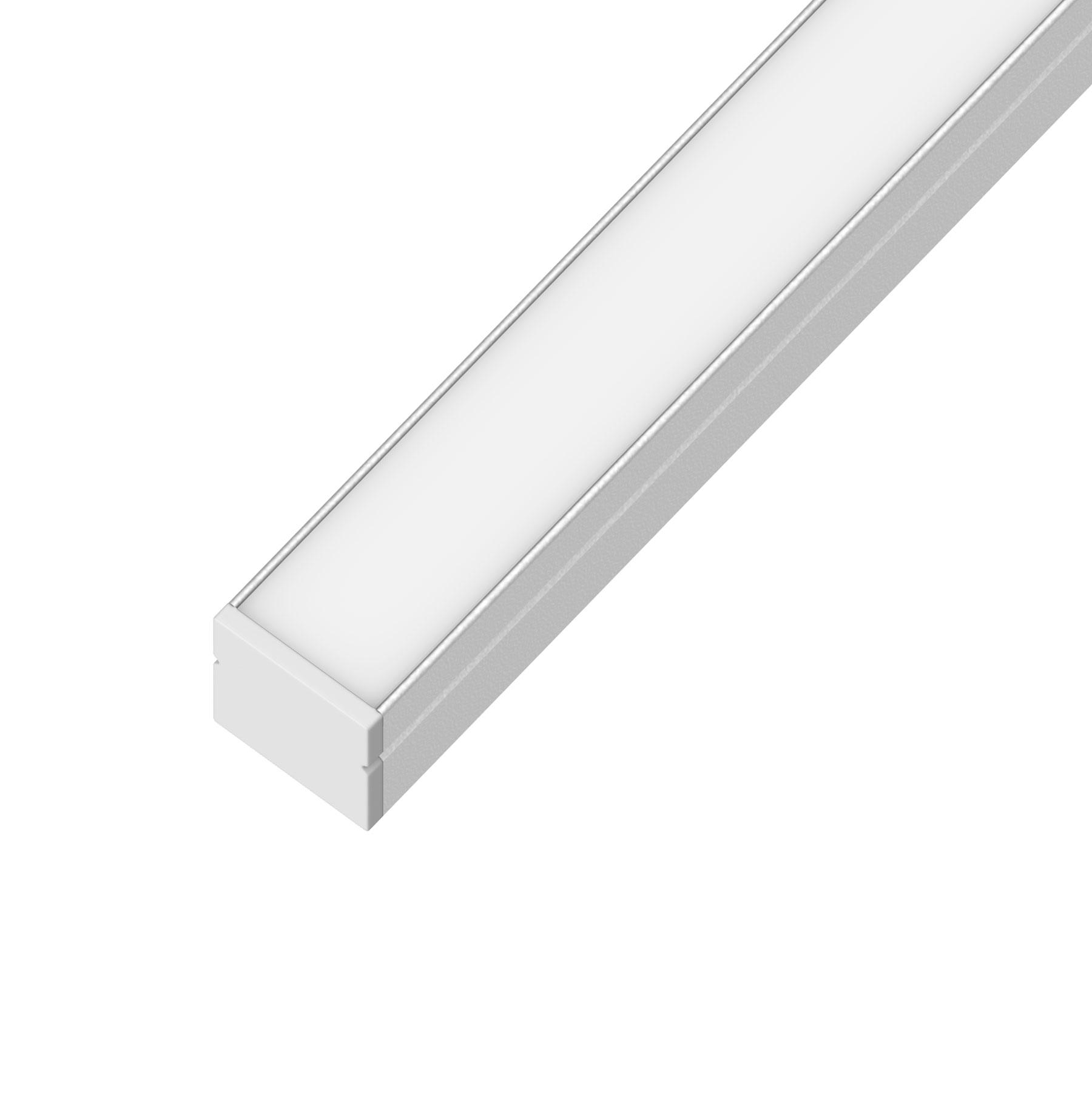

The LED Strip Channel DL – 1010 is a premium 10x10mm aluminum profile engineered to house and protect LED strips. Crafted from AL6063 – T5 aluminum alloy, this LED Strip Channel ensures superior heat dissipation. It significantly lowers the operating temperature of high – density LED strips (compatible with 2835, 2216, 2110, 3014, and 5630 types, up to 120 LEDs/m), thereby extending their service life.

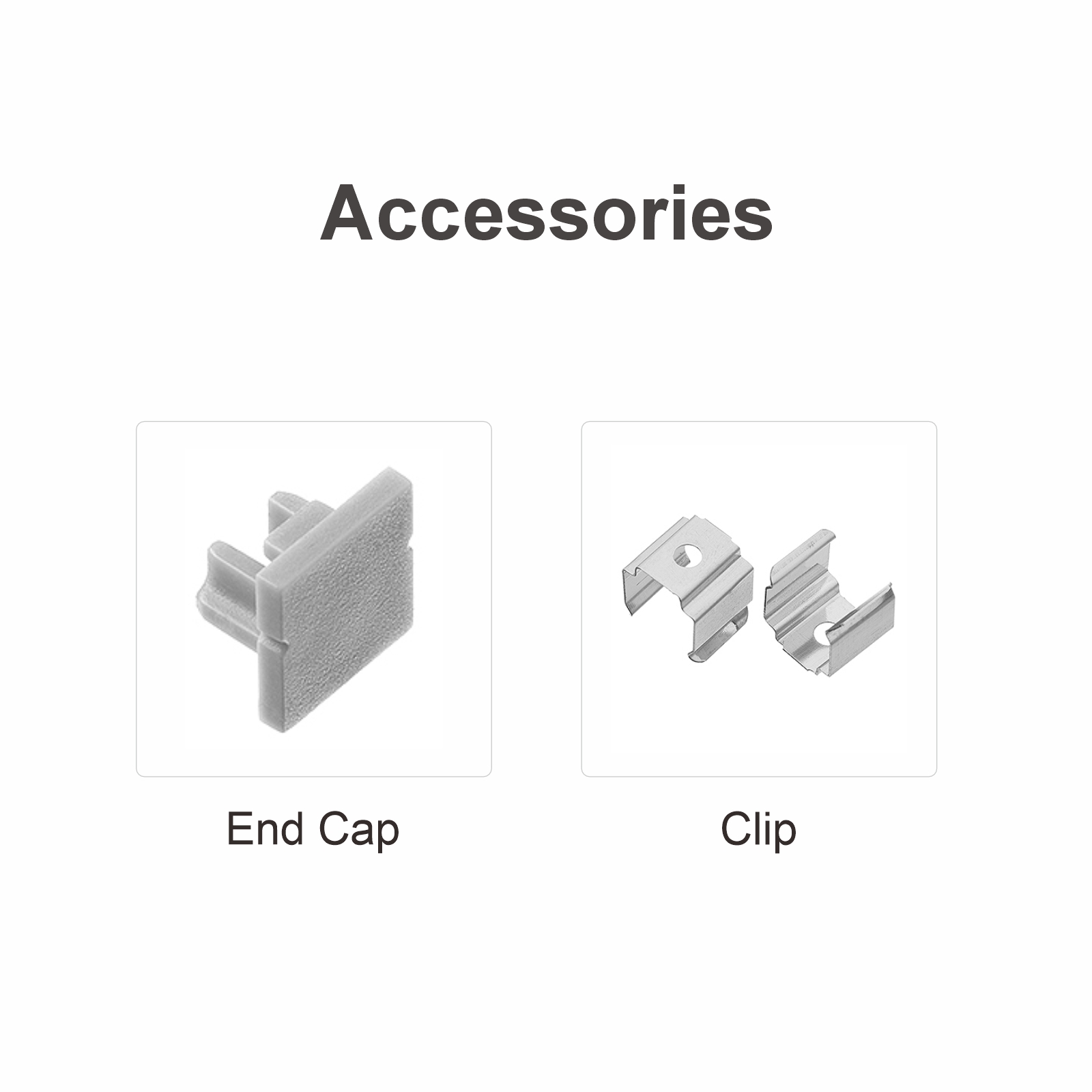

This LED Strip Channel features a sleek, minimalist design that seamlessly integrates into ceilings or walls for a clean, modern aesthetic. It accommodates FPCs with a maximum width of 6mm. The included high – transmittance PC cover (available in Transparent, Frosted, Milky, or Opal options) guarantees uniform, glare – free light distribution without dark spots. With a customizable length of 0.5 to 4 meters and optional colors (Silver, Black, White), this LED Strip Channel offers flexibility for various commercial and residential applications. It is complete with end caps and mounting clips for easy installation.
