Micro-Cut SOB strip | 8mm | 24V | 6.66cut | 15W | 300LEDs | 14157#
- Highly bending relibility SOB Liner light. With thicker PCB, better for heat dissipation, keep the good consitent brightness from begin to end.
- Special surface provide uniform luminescence and anti-glare.
- With built-in chip protection stents, make it higher power available. Special power is customizable.
- Wide CCT range for option from 1800K~7500K. Customizable full spectrum, 120° view angel high color efficiency.
- Mini cutting length only 6.6mm, no dark-area installation.
- No need extra covers. Perfect for area with low clearance or reflective surfaces to eliminate spot-glare.
Technical Details
| Part No. |
DL-FSOBA150V24-14157-* |
|---|---|
| SMD Type |
SOB |
| LED Qty |
300 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
15W/m |
| Lumen/m (max.) |
1829 lm/m @4000K |
| Lumen/W (max.) |
122 lm/W @4000K |
| Color |
CCT |
| CRI |
Ra ≥90 |
| PCB Width |
8mm |
| Beam Angle |
120° |
| IP Process |
IP20 ,IP66 |
| Warranty |
5 years |
Related Specifications

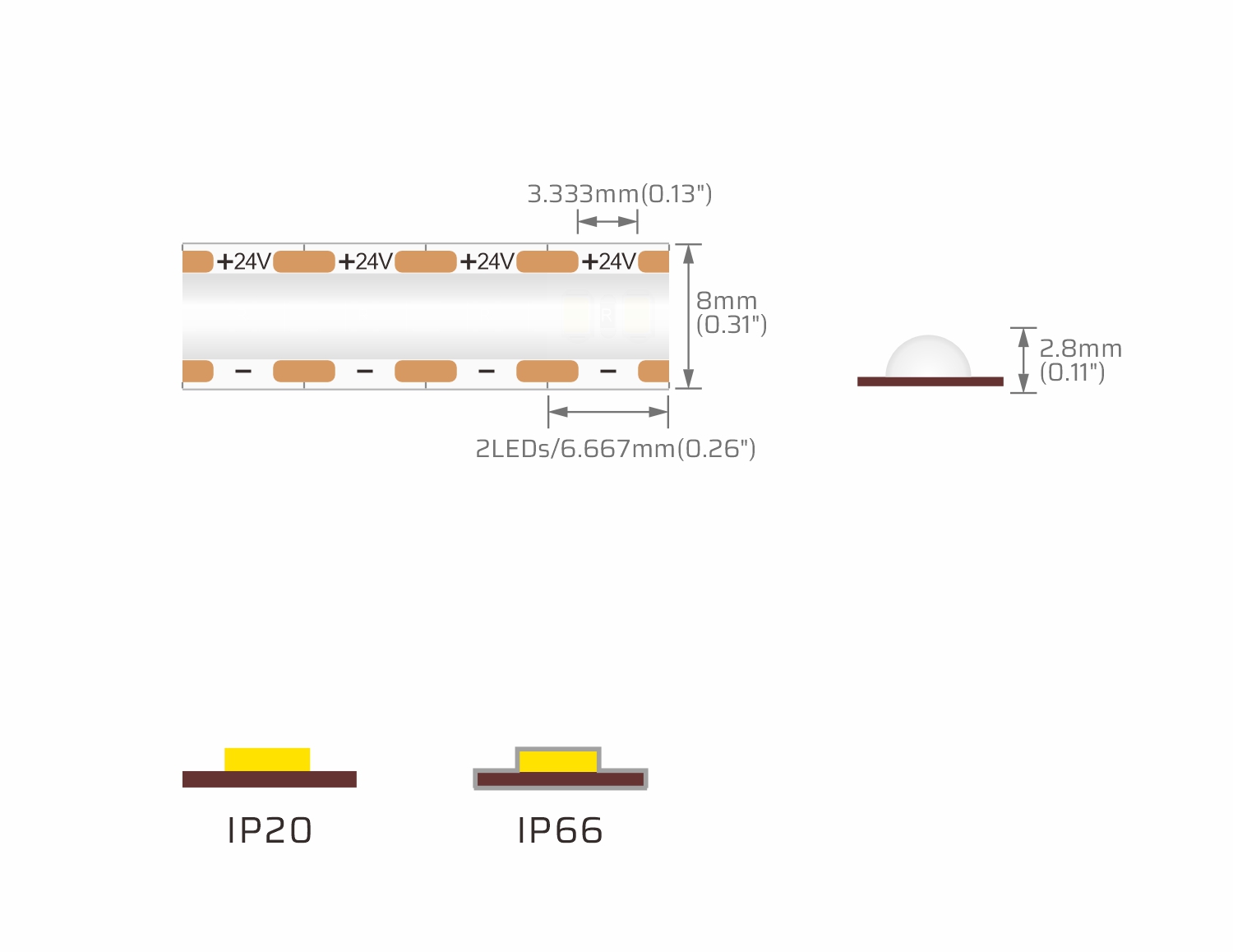

Length(max.): 5m(16.4′)/roll
Cutting unit: 2LEDs/6.667mm(0.26″)
LED Spacing: 3.333mm(0.13′′)
LED Height: 2.8mm(0.11′′)
Mounting: 3M tape
Min. bend: Φ60mm(2.36″)
Copper foil: 3oz
Lifetime: 50000h
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 15W/m | Ra≥90 | SWW | 1800K | 1383 | 92 | F |
| WW | 2700K | 1667 | 111 | E | ||
| WW | 3000K | 1754 | 117 | E | ||
| NW | 4000K | 1829 | 122 | E | ||
| PW | 6500K | 1753 | 117 | E | ||
| FS | WW | 2700K | 1351 | 90 | F | |
| WW | 3000K | 1427 | 95 | F | ||
| WW | 3500K | 1470 | 98 | F | ||
| NW | 4000K | 1510 | 101 | F |
