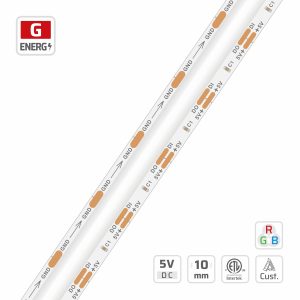

    10mm | 5V | 24W | 15.72cut | #8421 Special LED Strip Light

    • Pixel Flexible SOB LED strip light creates a seamless line of the light from start to finish.
    • Using a new desgin, eliminate visible LED dots (hot spots), improves thermal management and flexibility of the strip.
    • The SOB led strips biggest advantage is no glare, beautiful appearance,soft luminous surface, without spot that compared to the classical addressable rgb pixel led strips like ws2812b,sk6812 led strips.
    • Passing control data through a Serial Peripheral (SPI) Interface, digital LEDs offer an infinite range of fresh lighting.
    • 3M adhensive tape on backside of non-waterproof strip.
    • SPI Interface have the great compatibility with the controller on market.
    • Applications like display cases and backlighting, or where reflective surfaces such as granite and tile are used.
    Request A Quote
    Categories: ,

    Technical Details

    Part No.

    DL-FSOBA160V24-8421-*
    SMD Type

    SOB
    Voltage

    DC 5V
    Power Option

    24W/m
    Lumen/m (max.)

    550
    Lumen/W (max.)

    22
    Color

    RGB Digital
    PCB Width

    10mm
    Beam Angle

    120°
    IP Process

    IP20

    ,

    IP67
    Warranty

    5 years

    Related Specifications

    Length(max.): 3M(9.8′)

    Cutting Unit: 5LED/15.72mm(0.62′′)

    LED Spacing: 3.125mm(0.12″)

    LED Height: 2.2mm(0.07′′)

    Mounting: 3M tape

    Min. Bend Diameter: Φ60mm(2.362′′)

    Copper foil: 2oz

    On-off times: 10000（test times）

    Certification:UL

    Certified:CE/RoHS

    EMC compliance:EN 55015

    Product Photo-electric Parameters

    Power Color Wavelength LM/m LM/W Rated current
    24W RGB 460~480nm 556 22 4940mA/m
    8.85W Red 620~630nm 135 15 1770mA/m
    9W Green 520~530nm 370 41 1810mA/m
    9W Blue 465~470nm 116 13 1810mA/m

    Product Downloads

    Specification

    DL-FSOBA160V24-8421-*-Specifications



    Testing Report

    DL-FSOBA160V24-8421-*-Testing-Report



    Manual

    LED-Strip-User Manual.pdf

    WaterproofManual.pdf



    Certificate

    CE Certificate

    ROHS Certificate

    FCC Certificate
