10mm | 24V | 120LEDs | 14.4W | 50cut | #2307 | 2835 Classic PU LED Strip Light
- 2835 LEDs, providing professional linear lighting effect.
- Special PCB design, ensuring stable electrical properties.
- PU material is resistant to UV rays, high and low temperatures, ensuring the strip’s durability.
- High sealing capability, completely filling gaps to prevent water and dust ingress.
- Suitable for a wide range of applications including facade lighting, landscape illumination, pathway lighting, and accentuating cultural landmarks.
Technical Details
| Part No. |
DL-F28D60V24-2307-* |
|---|---|
| SMD Type |
2835 SMD |
| LED Qty |
120 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
14.4W/m |
| Lumen/m (max.) |
1419 lm/m @4000K,14.4W |
| Lumen/W (max.) |
99 lm/W @4000K,14.4W |
| Color |
White |
| CRI |
Ra ≥90 |
| SDCM |
≤3 Step 1Bin |
| PCB Width |
10mm |
| Beam Angle |
120° |
| IP Process |
IP68 |
| Warranty |
3 years |

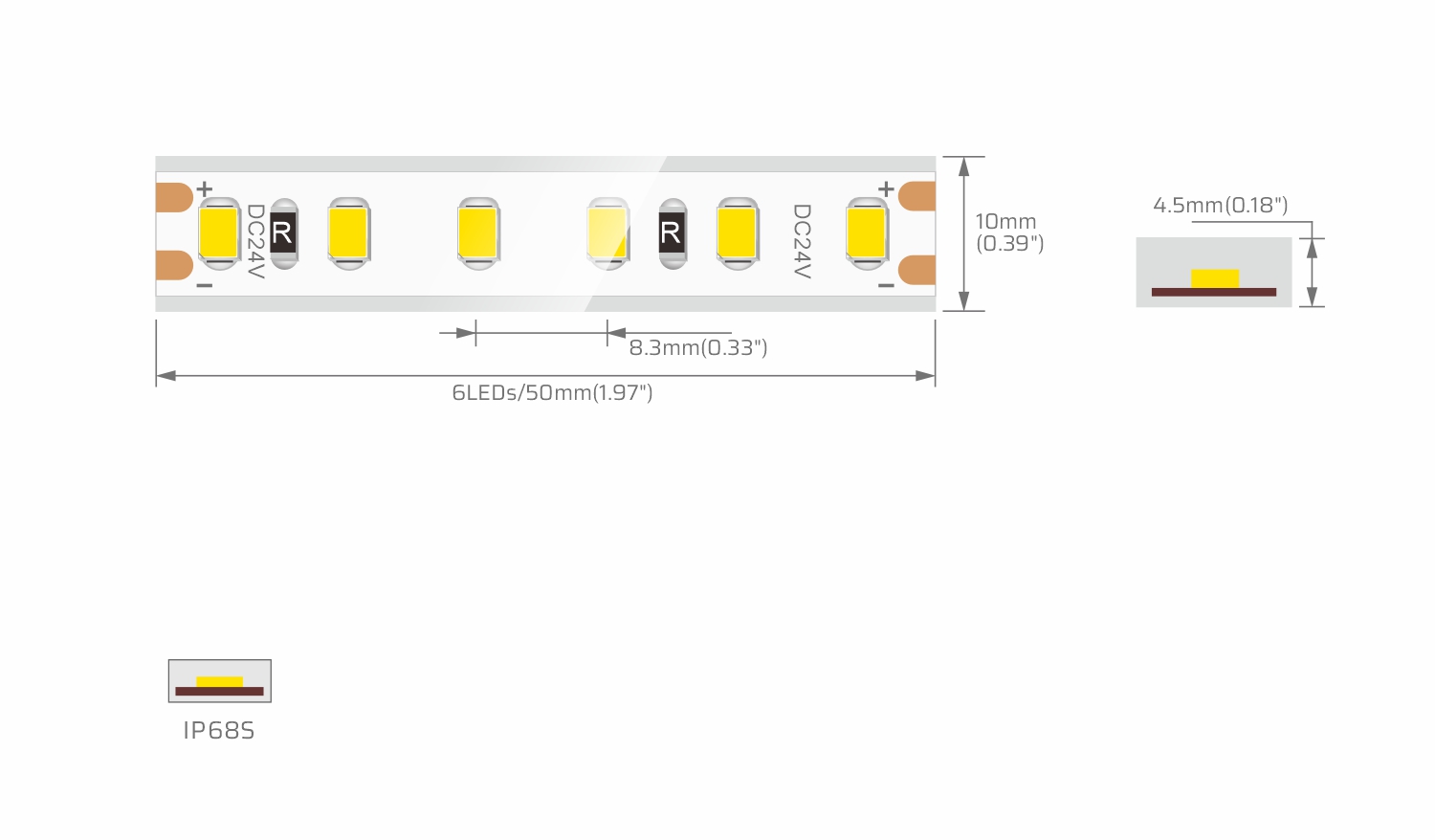

Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 6LEDs/50mm(1.968′′)
LED Spacing: 8.3mm(0.327′′)
Width:10mm(0.394′′)
Height: 4.5mm(0.177′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 9.6W/m | Ra≥90 | SWW | 1800K | 767 | 80 | G |
| SWW | 2300K | 855 | 89 | F | ||
| WW | 2700K | 925 | 96 | F | ||
| WW | 3000K | 973 | 101 | F | ||
| WW | 3500K | 990 | 103 | F | ||
| NW | 4000K | 1014 | 106 | F | ||
| NW | 5000K | 1014 | 106 | F | ||
| PW | 6500K | 972 | 101 | F | ||
| 14.4W/m | Ra≥90 | SWW | 1800K | 1073 | 75 | G |
| SWW | 2300K | 1195 | 83 | G | ||
| WW | 2700K | 1293 | 90 | F | ||
| WW | 3000K | 1361 | 95 | F | ||
| WW | 3500K | 1385 | 96 | F | ||
| NW | 4000K | 1419 | 99 | F | ||
| NW | 5000K | 1418 | 99 | F | ||
| PW | 6500K | 1360 | 94 | F | ||
| 19.2W/m | Ra≥90 | SWW | 1800K | 1327 | 69 | G |
| SWW | 2300K | 1478 | 77 | G | ||
| WW | 2700K | 1599 | 83 | G | ||
| WW | 3000K | 1683 | 88 | F | ||
| WW | 3500K | 1713 | 89 | F | ||
| NW | 4000K | 1754 | 91 | F | ||
| NW | 5000K | 1753 | 91 | F | ||
| PW | 6500K | 1682 | 88 | F |
