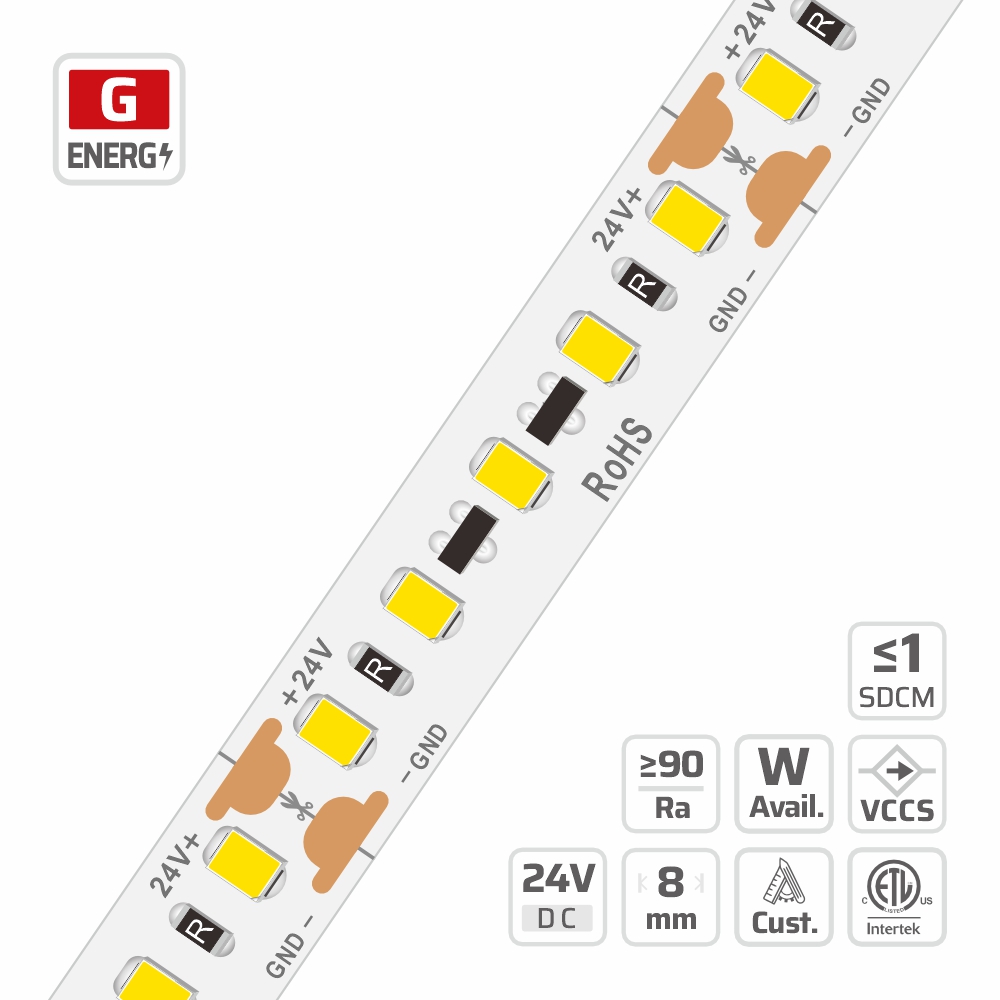

8mm | 24V | 120LEDs | 9.6W | 41.67cut | #7909 | 2835 1 SDCM Ultra-long LED strip light
SDCM LED Strips featuring 1-Step binning ensure ultra-tight color tolerance and superior consistency across every batch. These 1 SDCM LED Strips provide perfectly uniform light output, making them the reliable standard for high-performance projects.
-
1-Step Binning: Ensures high color accuracy and uniformity across the entire strip.
-
High Efficiency: Delivers up to 80 lm/W for a high degree of energy efficiency.
-
Dot-free Light: 120 LEDs/m to ensure continuous light without dots.
-
Ultra-long Run: 15m length with no brightness dropped to keep high efficiency.
-
Precise Cutting: 5 LEDs per cutting unit for versatile installation.
-
Durable Build: Exceeds 50,000 hours lifespan with reliable 2835 SMD LEDs.
Applications: 1 SDCM LED Strips are suitable for indoor decorative lighting in environments like kitchens and offices. In commercial spaces, including retail stores, restaurants, and display showcases, these 1 SDCM LED Strips enhance product appeal by providing consistent, high-quality linear light.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Technical Details
| Part No. | DL-F28A60V24-7909-B-* |
|---|---|
| SMD Type | 2835 SMD |
| LED Qty | 120LEDs/m |
| Voltage | DC 24V |
| Power Option | 9.6W/m |
| Lumen/m (max.) | 767 lm/m @4000K |
| Lumen/W (max.) | 80 lm/W @4000K |
| Color | White |
| CRI | Ra ≥95 |
| SDCM | 1 Step 1Bin |
| PCB Width | 8mm |
| Beam Angle | 120° |
| IP Process | IP20, IP66, IP67 |
| Warranty | 5 years |
Related Specifications
Length(max.): 15m(49.2′)/roll
Cutting unit: 5LEDs/41.67mm(1.64”)
LED spacing: 8.33mm(0.33”)
LED height: 0.9mm(0.04”)
Mounting: 3M tape
Min. bend: Φ60mm(2.36”)
Copper foil: 3oz
Pure Gold wire: 99.99%
Lifetime: 50000h
Eye security:IEC 62471
Certification:UL
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 9.6W/m | Ra≥90 | WW | 2700K | 699 | 73 | G |
| WW | 3000K | 736 | 77 | G | ||
| NW | 4000K | 767 | 80 | G | ||
| PW | 6500K | 735 | 77 | G |
1-Step Binning for LED Color Uniformity
By adopting 1-Step binning (1 SDCM) LEDs, chromaticity tolerance is strictly controlled within one MacAdam Step at the source.
The tighter binning process concentrates LED color coordinates more precisely, effectively reducing overall color variation across the strip and improving consistency between production batches, ensuring closer color matching among new strips.
With the minimized tolerance, excellent color uniformity can still be maintained even when fewer LEDs are used or when light mixing is limited, helping prevent visible color patches or shifts.
It also delivers cleaner and more uniform illumination in shallow aluminum profiles, narrow channels, or direct-view applications where mixing distance is restricted.
Ideal for professional linear lighting projects requiring high color consistency and visual uniformity.
| 2700K: 1-SDCM ±30 (2695~2755k) | 3-SDCM ±115 (2615~2845k) |
| 3000K: 1-SDCM ±35 (3010~3080k) | 3-SDCM ±125 (2925~3175k) |
| 3500K: 1-SDCM ±40 (3425~3505k) | 3-SDCM ±160 (3310~3630k) |
| 4000K: 1-SDCM ±45 (3940~4030k) | 3-SDCM ±187 (3805~4180k) |
| 5000K: 1-SDCM ±70 (4960~5100k) | 3-SDCM ±267 (4775~5310k) |
| 6500K: 1-SDCM ±87 (6450~6625k) | 3-SDCM ±337 (6210~6885k) |

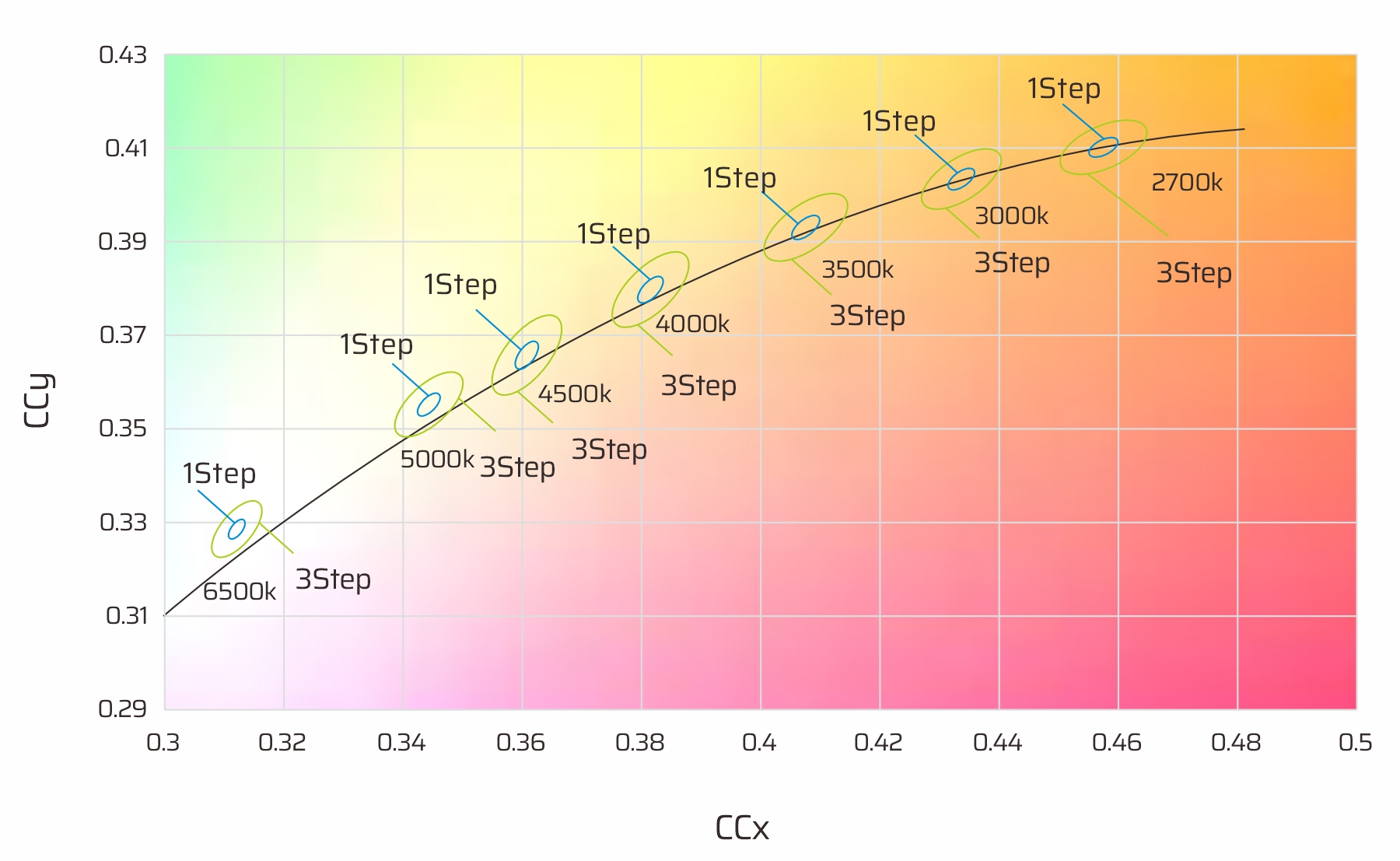

The diagram shows 1-Step and 3-Step MacAdam tolerance across CCTs.1-Step (1 SDCM) binning ensures higher batch consistency and superior color uniformity.
