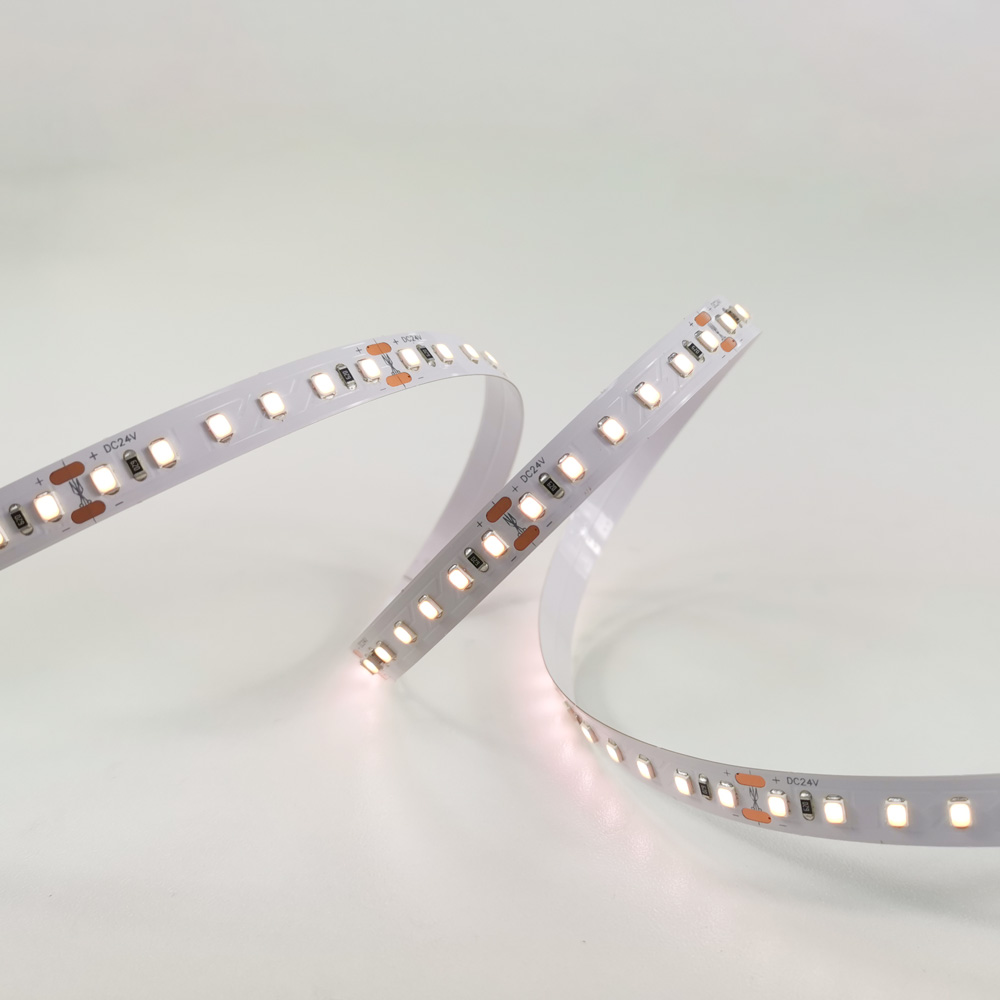

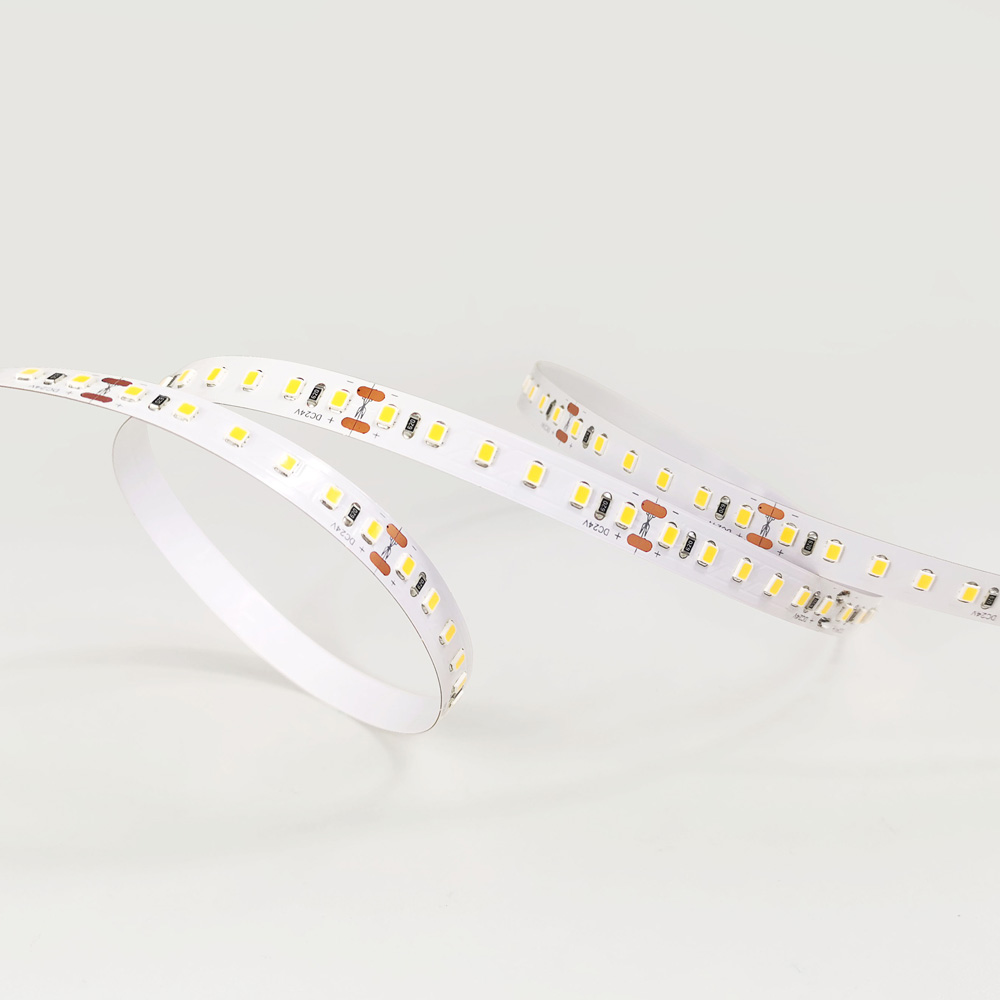

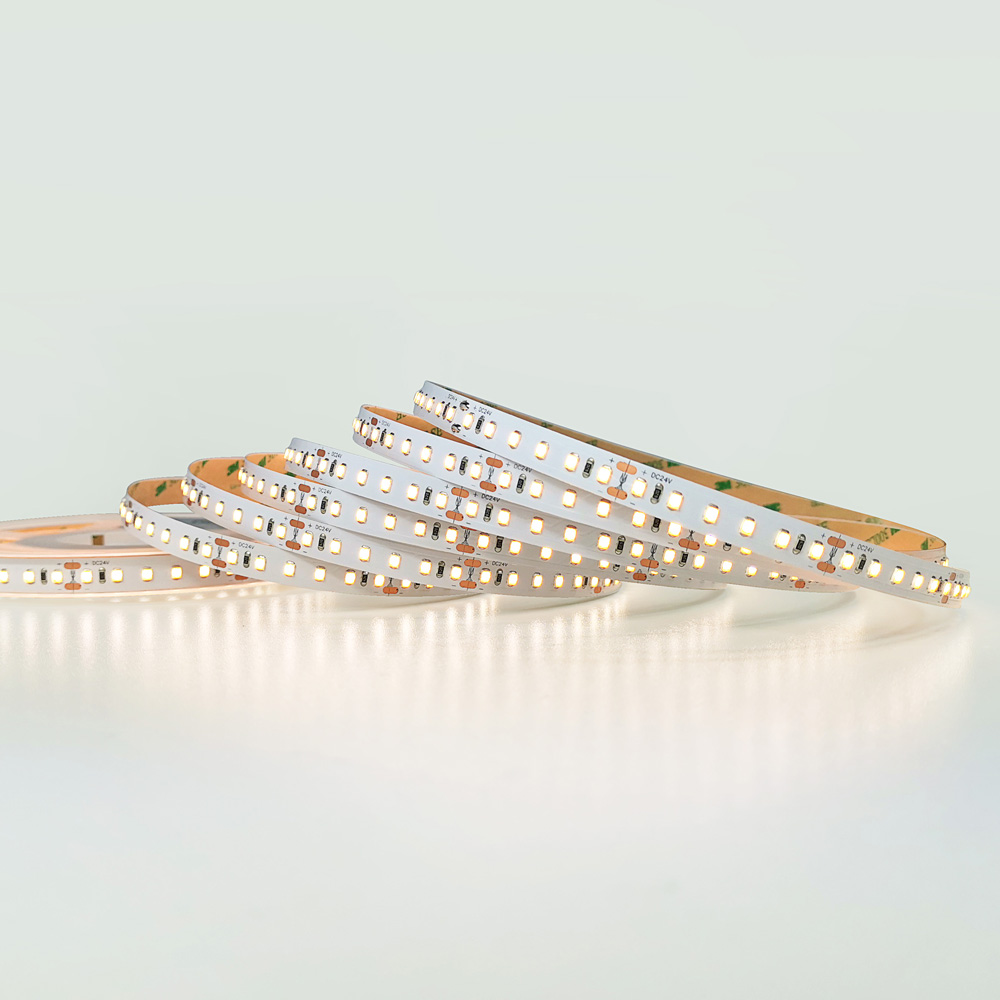

10mm | 24V | 120LEDs | 12W | 50cut | #2176 | 2835 1 SDCM Classic High Consistency LED Strip
1 SDCM LED Strips featuring 1-Step binning are engineered to provide superior color accuracy and batch-to-batch consistency. By utilizing these 1 SDCM LED Strips, you ensure high uniformity across the entire installation, eliminating visible color deviations or “patching” effects.
Technical Selling Points:
-
Classic Performance: 2835 SMD LEDs with 120 LEDs/m for reliable lighting.
-
Advanced Control: Supports PWM, DALI, and 0–10V dimming protocols.
-
Easy Setup: Strong 3M adhesive backing for quick installation.
-
Durability: Long lifespan exceeding 50,000 hours with low power consumption.
Applications: 1 SDCM LED Strips are ideal for indoor decorative lighting in kitchens and offices. In commercial spaces such as retail stores, restaurants, and display showcases, these 1 SDCM LED Strips enhance product appeal by providing consistent, high-quality linear light that meets professional architectural standards.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Technical Details
| Part No. | DL-F28A60V24-2176-B-* |
|---|---|
| SMD Type | 2835 SMD |
| LED Qty | 120 LEDs/m |
| Voltage | DC 24V |
| Power Option | 12W/m |
| Lumen/m (max.) | 1163 lm/m @4000K |
| Lumen/W (max.) | 97 lm/W @4000K |
| Color | White |
| CRI | Ra ≥90 |
| SDCM | 1 Step 1Bin |
| PCB Width | 10mm |
| Beam Angle | 120° |
| IP Process | IP20, IP54, IP65, IP66, IP67, IP68 |
| Warranty | 5 years |
Related Specifications
Length(max.): 5M(16.4′)/roll

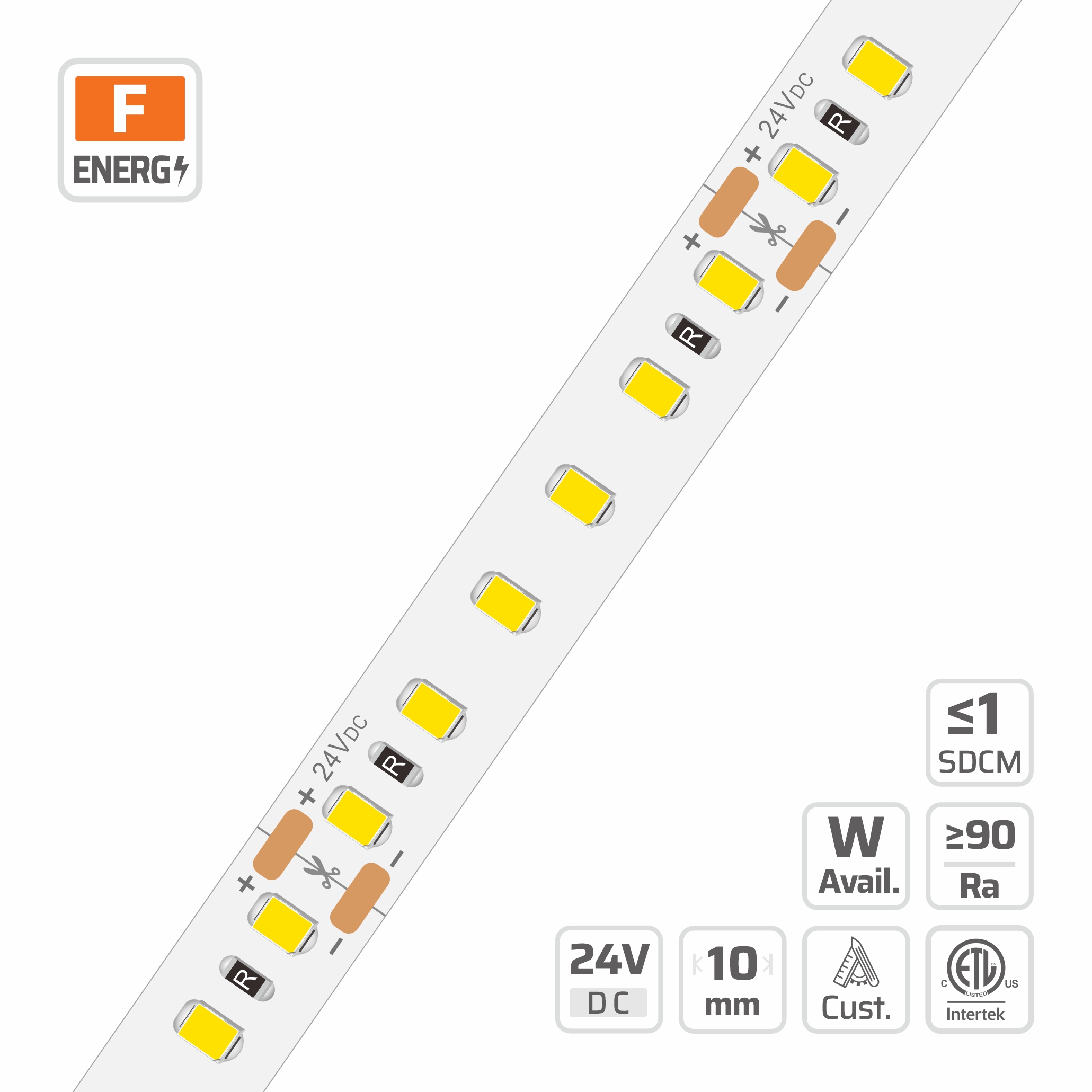

Cutting Unit: 6LEDs/50mm(1.968′′)
LED Spacing: 8.3mm(0.326′′)
LED Height: 0.9mm(0.035′′)
Mounting: 3M tape
Min. Bend Diameter: Φ60mm(2.362′′)
Copper foil: 3oz
Pure Gold wire: 99.99%
On-off times: 10000（test times）
Eye security:IEC 62471
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Erp |
| 12W/m | Ra≥90 | WW | 2700K | 1060 | 88 | F |
| WW | 3000K | 1116 | 93 | F | ||
| NW | 4000K | 1163 | 97 | F | ||
| PW | 6500K | 1115 | 93 | F |
1-Step Binning for LED Color Uniformity
By adopting 1-Step binning (1 SDCM) LEDs, chromaticity tolerance is strictly controlled within one MacAdam Step at the source.
The tighter binning process concentrates LED color coordinates more precisely, effectively reducing overall color variation across the strip and improving consistency between production batches, ensuring closer color matching among new strips.
With the minimized tolerance, excellent color uniformity can still be maintained even when fewer LEDs are used or when light mixing is limited, helping prevent visible color patches or shifts.
It also delivers cleaner and more uniform illumination in shallow aluminum profiles, narrow channels, or direct-view applications where mixing distance is restricted.
Ideal for professional linear lighting projects requiring high color consistency and visual uniformity.
| 2700K: 1-SDCM ±30 (2695~2755k) | 3-SDCM ±115 (2615~2845k) |
| 3000K: 1-SDCM ±35 (3010~3080k) | 3-SDCM ±125 (2925~3175k) |
| 3500K: 1-SDCM ±40 (3425~3505k) | 3-SDCM ±160 (3310~3630k) |
| 4000K: 1-SDCM ±45 (3940~4030k) | 3-SDCM ±187 (3805~4180k) |
| 5000K: 1-SDCM ±70 (4960~5100k) | 3-SDCM ±267 (4775~5310k) |
| 6500K: 1-SDCM ±87 (6450~6625k) | 3-SDCM ±337 (6210~6885k) |
The diagram shows 1-Step and 3-Step MacAdam tolerance across CCTs.1-Step (1 SDCM) binning ensures higher batch consistency and superior color uniformity.
