10mm | 24V | 128LEDs | 14.4W | 62.5cut | #3015 | 2835 Full Spectrum High Light Efficacy High Lumen LED Strip
- Full Spectrum LED strips achieve true-to-life color reproduction while pursuing high color fidelity (Rf>95) and vivid saturation performance (Rg>100), presenting you with a realistic and vibrant world of light and shadow.
- Constant voltage (C.V.) design ensures stable brightness and consistent performance throughout the strip.
- High lumen output combined with superior light efficacy provides energy-efficient illumination with outstanding brightness.
- Supports multiple dimming methods such as PWM, DALI, and 0-10V for versatile lighting control.
- Suitable for a wide range of applications including retail lighting, architectural lighting, display showcases, and high-end residential lighting.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Technical Details
| Part No. | DL-F28A64V24-3015-F-* |
|---|---|
| SMD Type | 2835 SMD |
| LED Qty | 128 LEDs/m |
| Voltage | DC 24V |
| Power Option | 15W/m |
| Lumen/m (max.) | 2035 lm/m @4000K |
| Lumen/W (max.) | 136 lm/W @4000K |
| Rf | 96 |
| Rg | 102 |
| Color | White |
| CRI | Full-Spectrum |
| SDCM | ≤3 Step 1Bin |
| PCB Width | 10mm |
| Beam Angle | 120° |
| IP Process | IP20, IP54, IP65, IP66, IP67, IP68 |
| Warranty | 5 years |
Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 8LEDs/62.5mm(2.46′′)
LED Spacing: 7.8mm(0.31′′)
LED Height: 0.9mm(0.04′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 3oz
Pure Gold wire: 99.99%
Lifetime: 50000h
Eye security:IEC 62471
Certification:UL
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Rf | Rg | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 15W | Full Spectrum | 96 | 102 | WW | 2700K | 1822 | 121 | E |
| WW | 3000K | 1924 | 128 | E | ||||
| WW | 3500K | 1981 | 132 | E | ||||
| NW | 4000K | 2035 | 136 | D |

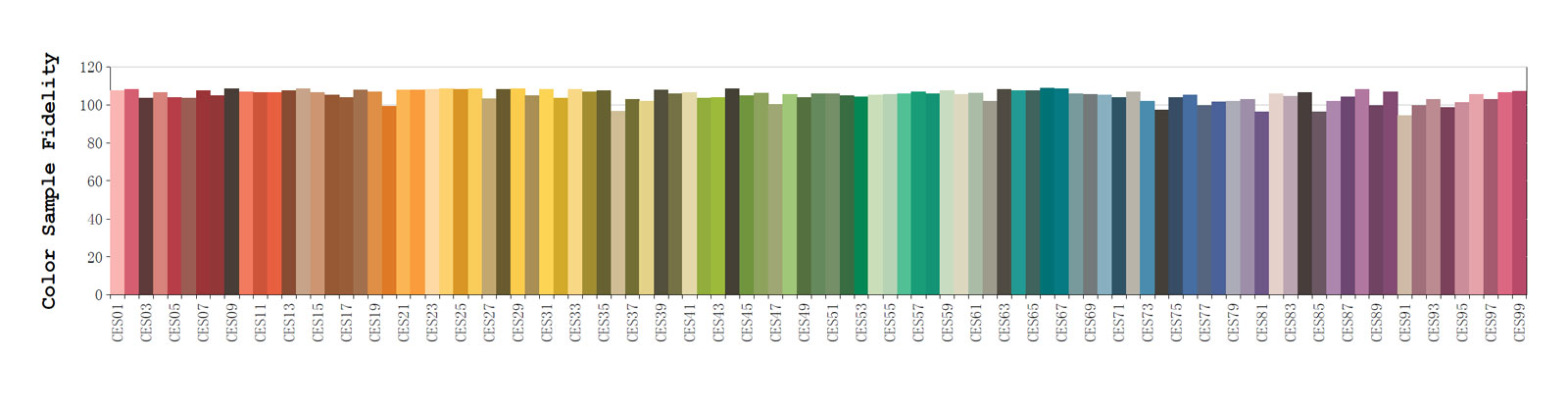

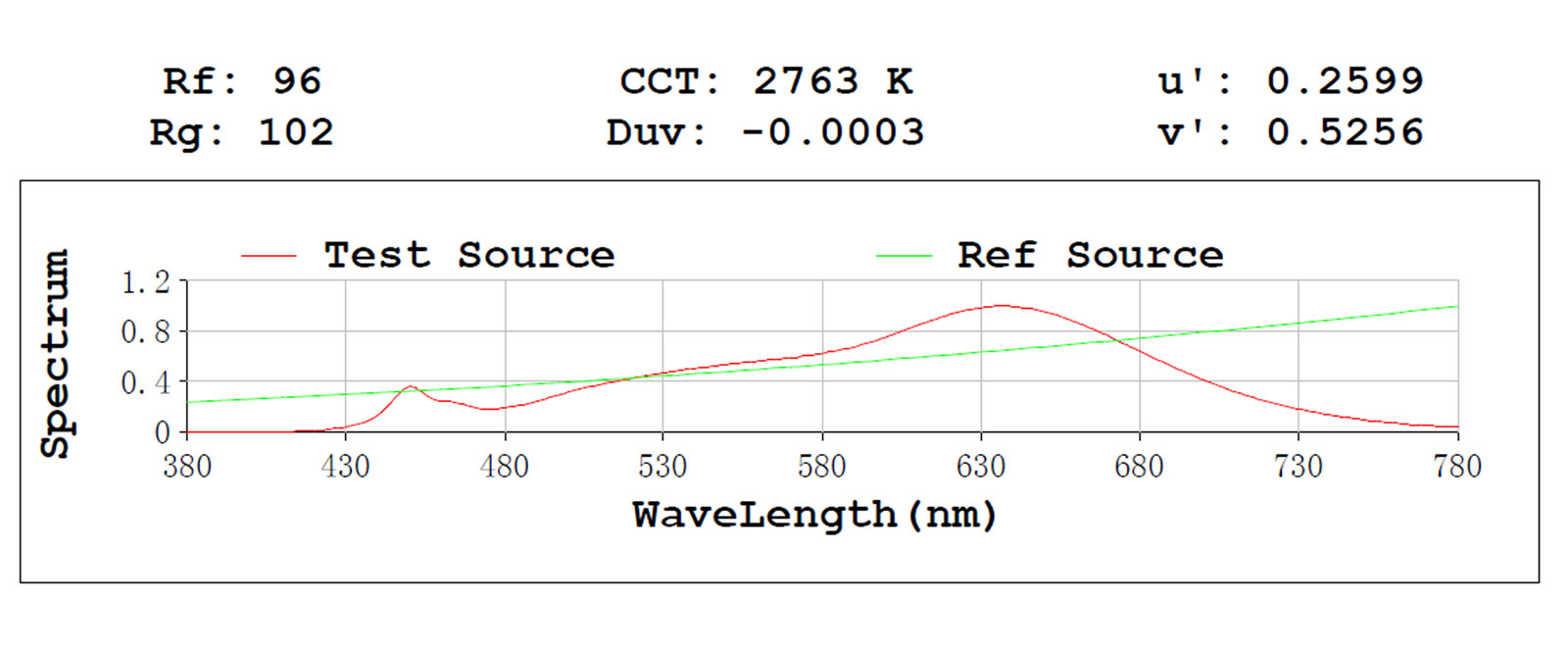

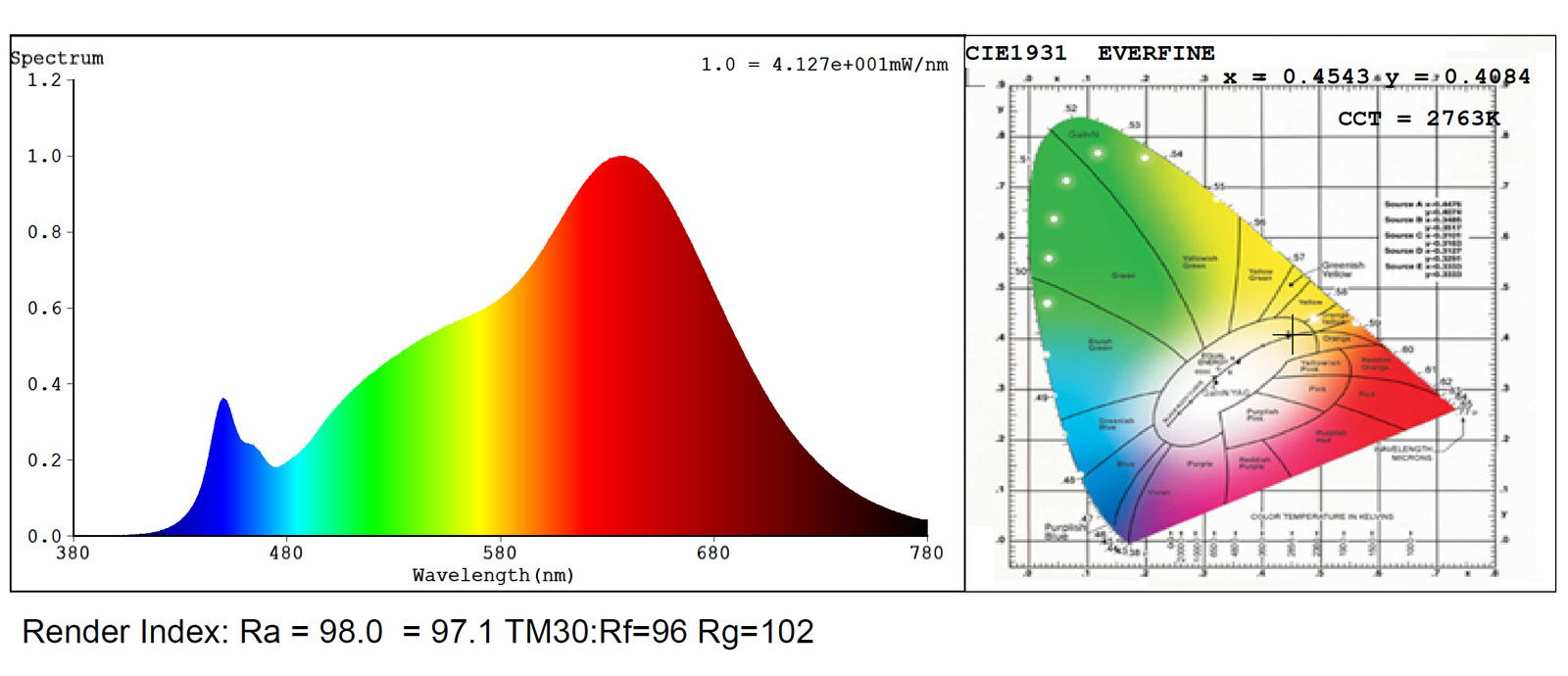

Spectral Power Distribution and TM-30 Evaluation
The Spectral Power Distribution and related colorimetric parameters of the light source are shown below, used to evaluate spectral continuity and color sample fidelity, and serving as the basis for TM-30 color quality analysis.
