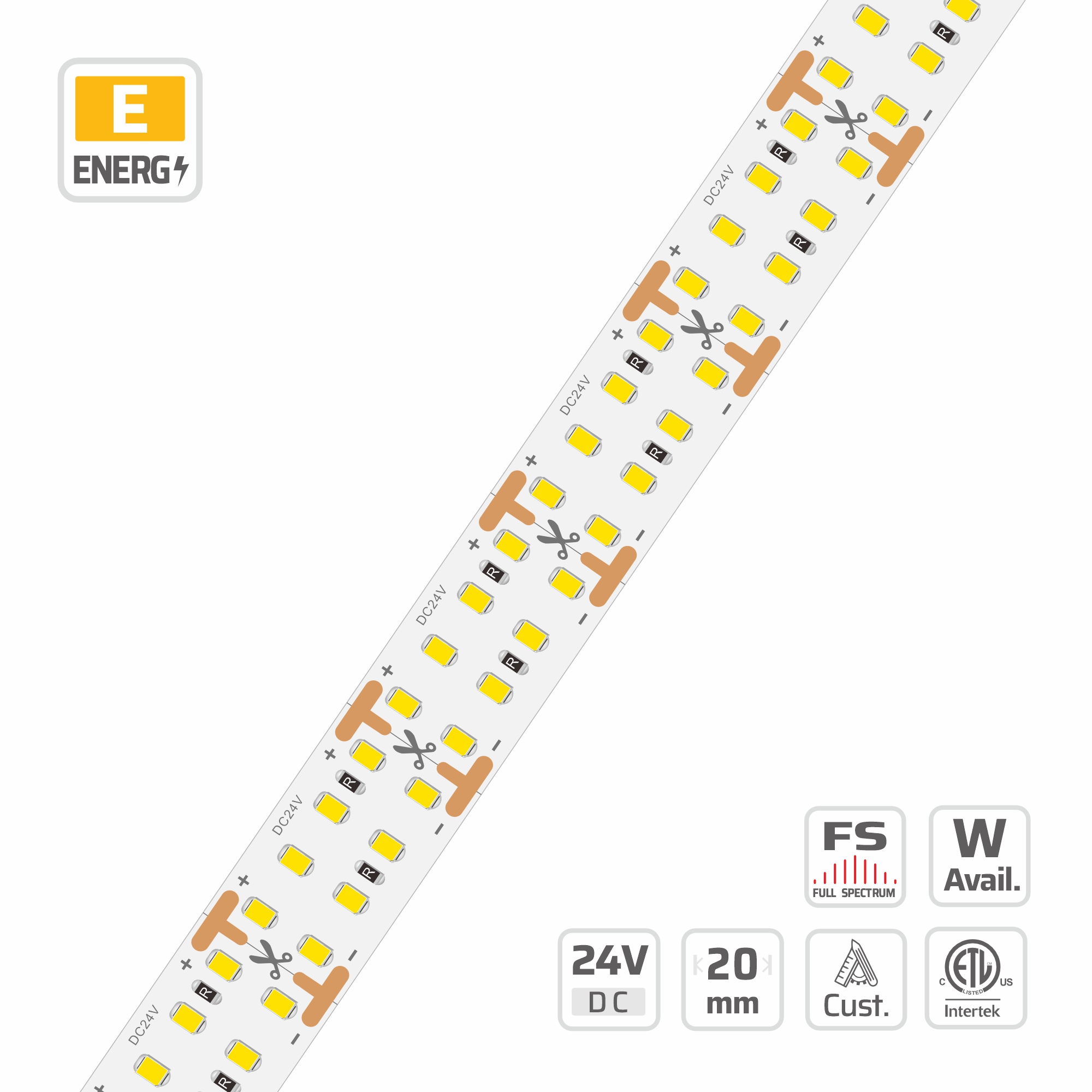

20mm | 24V | 256LEDs | 24W | 31.25cut | #5871 | 2835 Full Spectrum High Light Efficacy LED Strip
- Full Spectrum LED strips achieve true-to-life color reproduction while pursuing high color fidelity (Rf>95) and vivid saturation performance (Rg>100), presenting you with a realistic and vibrant world of light and shadow.
- The dual-row design not only increases brightness but also enhances light uniformity and visual comfort, meeting professional lighting demands.
- This strip offers excellent luminous efficacy and color rendering, ideal for lighting applications requiring precise color reproduction.
- It is widely applicable for commercial display lighting, art exhibitions, film and stage lighting, as well as upscale residential environments.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Technical Details
| Part No. | DL-F28A128V24-5871-F-* |
|---|---|
| SMD Type | 2835 SMD |
| LED Qty | 256 LEDs/m |
| Voltage | DC 24V |
| Power Option | 24W/m |
| Lumen/m (max.) | 3094 lm/m @4000K |
| Lumen/W (max.) | 129 lm/W @4000K |
| Rf | 96 |
| Rg | 101 |
| Color | White |
| CRI | Full-Spectrum |
| SDCM | ≤3 Step 1Bin |
| PCB Width | 20mm |
| Beam Angle | 120° |
| IP Process | IP20, IP65, IP66, IP67, IP68 |
| Warranty | 5 years |
Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 8LEDs/31.25mm(1.23′′)
LED Spacing: 7.8mm(0.31′′)
LED Height: 0.9mm(0.04′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.36′′)
Copper foil: 3oz
Pure Gold wire: 99.99%
Lifetime: 50000h
Eye security:IEC 62471
Certification:UL
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Rf | Rg | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 24W | Full Spectrum | 96 | 101 | WW | 2700K | 2769 | 115 | E |
| WW | 3000K | 2924 | 122 | E | ||||
| WW | 3500K | 3012 | 126 | E | ||||
| NW | 4000K | 3094 | 129 | E |

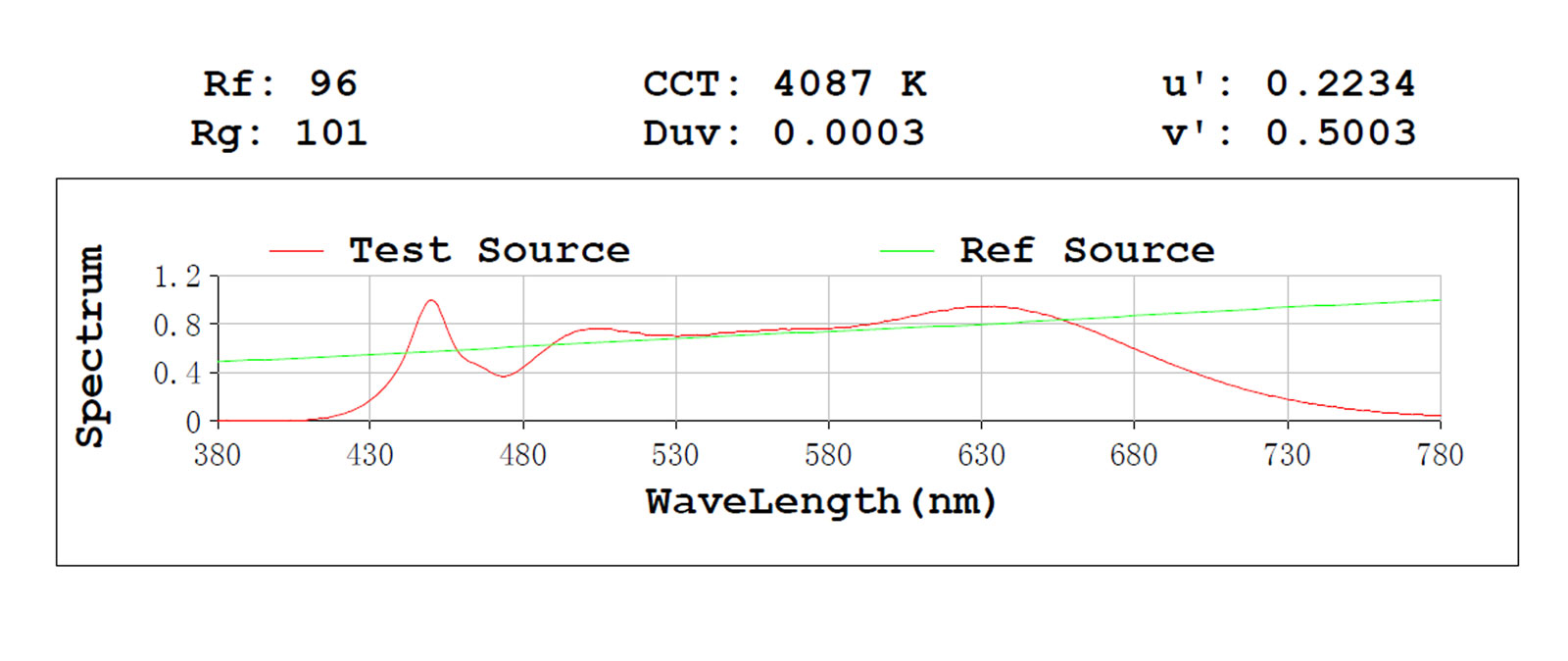

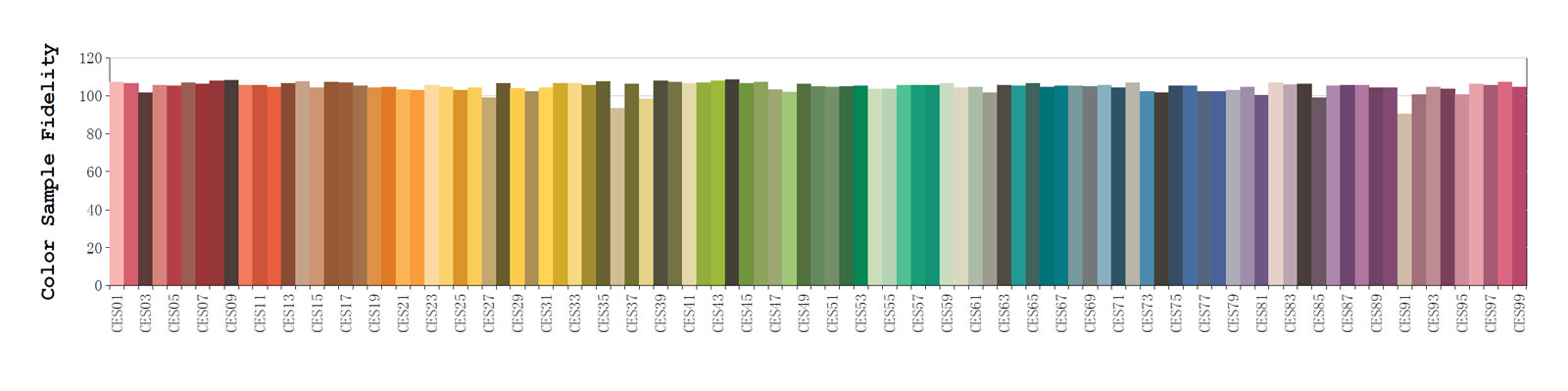

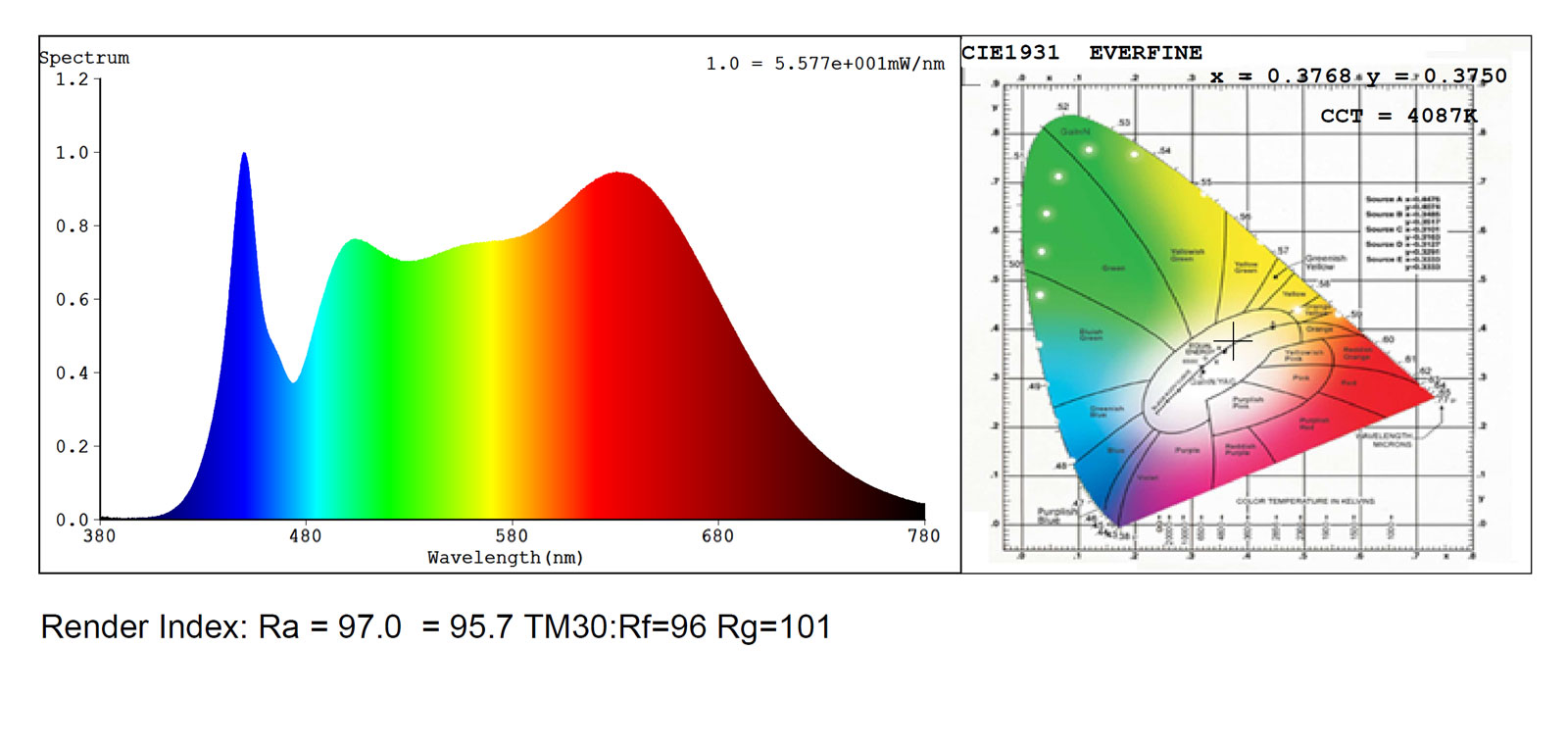

Spectral Power Distribution and TM-30 Evaluation
The Spectral Power Distribution and related colorimetric parameters of the light source are shown below, used to evaluate spectral continuity and color sample fidelity, and serving as the basis for TM-30 color quality analysis.
