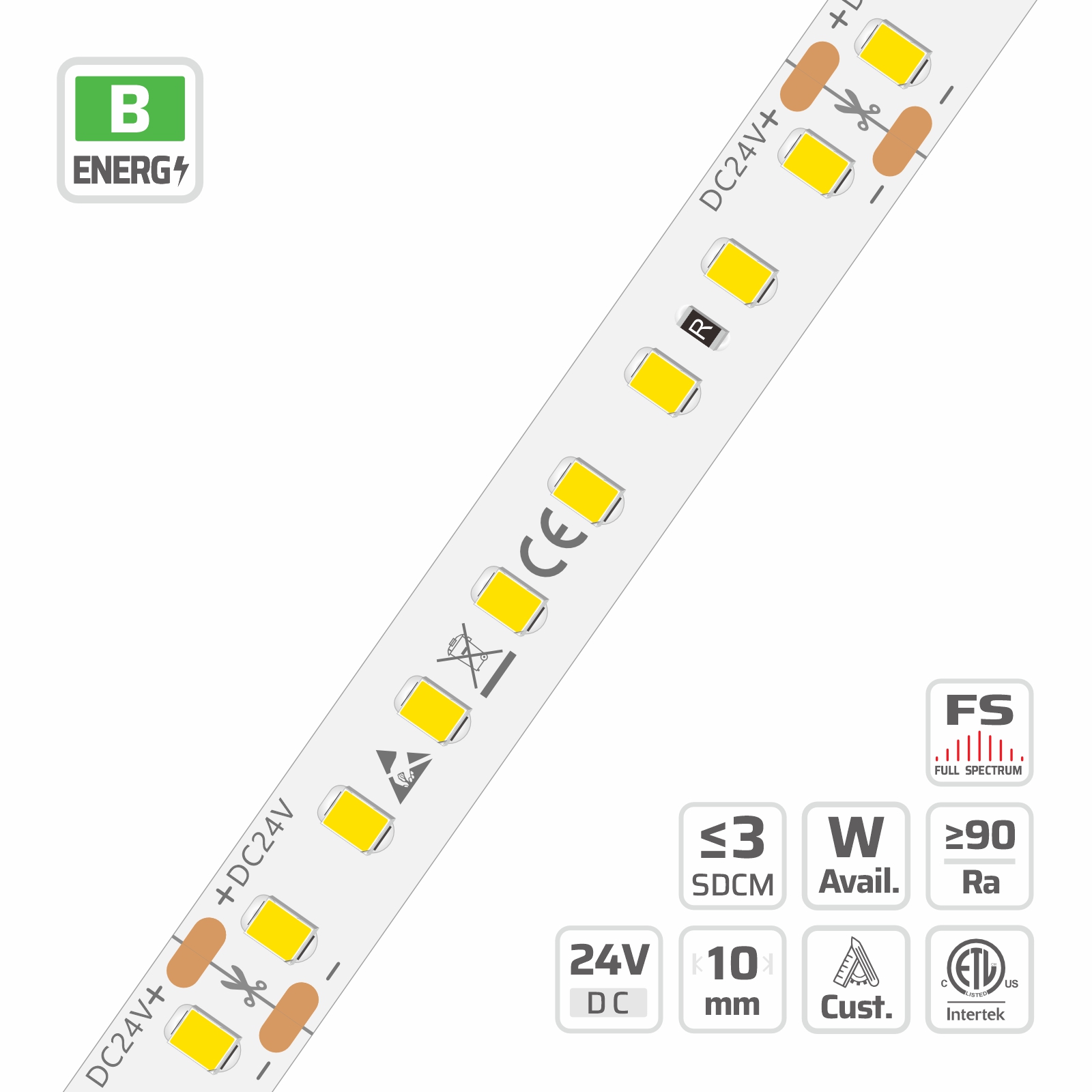

10mm | 24V | 128LEDs | 14.4W | 62.5cut | #3015 | 2835 High Light Efficacy High Lumen LED Strip
- The long-reel LED strip light is designed with high-density LED placement (128 LEDs/m) and advanced optical technology. This particular long-reel LED strip light model offers exceptional brightness while maintaining energy efficiency.
- For installation flexibility, the long-reel LED strip light supports continuous runs up to 50 meters without interruption. The durability of this long-reel LED strip light makes it suitable for various commercial and residential applications.
- When selecting a long-reel LED strip light, consider the specific requirements of your project to ensure optimal performance.
We use 99.99% gold wire, large-size chips, and thickened FPCB, backed by a 5-year warranty.
Technical Details
| Part No. | DL-F28A64V24-3015-* |
|---|---|
| SMD Type | 2835 SMD |
| LED Qty | 128 LEDs/m |
| Voltage | DC 24V |
| Power Option | 14.4W/m |
| Lumen/m (max.) | 2390 lm/m @4000K |
| Lumen/W (max.) | 204 lm/W @4000K |
| Color | White |
| CRI | Ra ≥80, Ra ≥90, Ra ≥95 |
| SDCM | ≤3 Step 1Bin |
| PCB Width | 10mm |
| Beam Angle | 120° |
| IP Process | IP20, IP54, IP65, IP66, IP67, IP68 |
| Warranty | 5 years |
Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 8LEDs/62.5mm(2.460′′)
LED Spacing: 7.8mm(0.307′′)
LED Height: 0.9mm(0.035′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 3oz
Pure Gold wire: 99.99%
On-off times: 10000（test times）
Eye security:IEC 62471
Certification:UL
Certified:CE/RoHS/ETL
EMC compliance:EN 55015
Product Photo-electric Parameters
| Ra≥80 | ||||||
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 14.4W | Ra≥80 | SWW | 1900K | 1810 | 155 | D |
| SWW | 2300K | 2020 | 173 | C | ||
| WW | 2700K | 2175 | 186 | B | ||
| WW | 3000K | 2285 | 195 | B | ||
| WW | 3500K | 2320 | 198 | B | ||
| NW | 4000K | 2390 | 204 | B | ||
| NW | 5000K | 2385 | 204 | B | ||
| PW | 6500K | 2285 | 195 | B | ||
| Ra≥90 | ||||||
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 14.4W | Ra≥90 | SWW | 1900K | 1455 | 124 | E |
| SWW | 2300K | 1620 | 139 | D | ||
| WW | 2700K | 1760 | 150 | D | ||
| WW | 3000K | 1860 | 159 | D | ||
| WW | 3500K | 1895 | 162 | C | ||
| NW | 4000K | 1935 | 165 | C | ||
| NW | 5000K | 1935 | 165 | C | ||
| PW | 6500K | 1860 | 159 | D | ||
| Ra≥95 | ||||||
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 14.4W | Ra≥95 | WW | 2700K | 1425 | 122 | E |
| WW | 3000K | 1510 | 129 | E | ||
| WW | 3500K | 1560 | 133 | E | ||
| NW | 4000K | 1600 | 136 | D |
