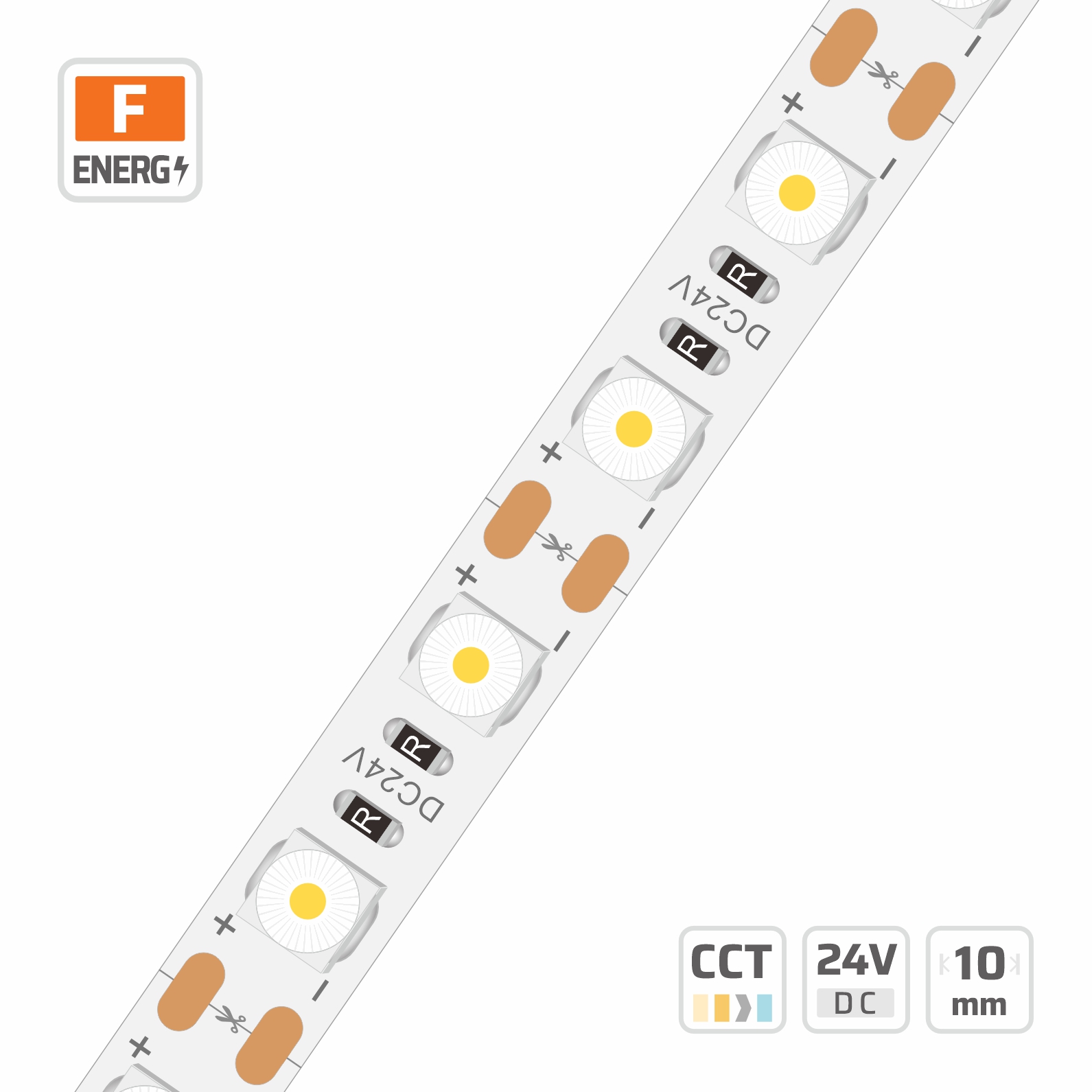

10mm | 24V | 60LEDs | 19.2W | 33.33cut | #6678 Lenses LED Strip Light
Membrane top is encapsulated with environmental silicon material, which has high light transmittance, reflow light decay, high temperature resistance. and can be reflow soldered to protect the led chip well. It has large-area bracket heat sink, fast heat conduction, and low light decay
Technical Details
| Part No. |
DL-F60A30V24-Lens-6678-* |
|---|---|
| SMD Type |
6060 SMD |
| LED Qty |
60 LEDs/m |
| Voltage |
DC 24V |
| Power Option |
19.2W/m |
| Lumen/m (max.) |
2140 lm/m @6500K |
| Lumen/W (max.) |
108 lm/W @6500K |
| Color |
White |
| CRI |
Ra ≥80 |
| PCB Width |
10mm |
| Beam Angle |
160° |
| IP Process |
IP20 ,IP66 ,IP54 |
| Warranty |
5 years |
Related Specifications
Length(max.): 5M(16.4′)/roll
Cutting Unit: 2LEDs/33.33mm(1.312′′)
LED Spacing: 16.7mm(0.657′′)
LED Height: 3mm(0.118′′)
Mounting: 3M tape
Min. Bend: Φ60mm(2.362′′)
Copper foil: 2oz
On-off times: 10000（test times）
Certification:UL
Certified:CE/RoHS
EMC compliance:EN 55015
Product Photo-electric Parameters
| Power | CRI | Color | Color Temperature | LM/m | LM/W | Energy Efficiency Class |
| 19.2W | Ra≥80 | WW | 2700K | 1820 | 92 | F |
| 19.2W | Ra≥80 | WW | 3000K | 1865 | 94 | F |
| 19.2W | Ra≥80 | NW | 4000K | 1940 | 98 | F |
| 19.2W | Ra≥80 | NW | 6500K | 2040 | 103 | F |
| 19.2W | Ra≥80 | PW | 10000K | 2140 | 108 | F |
Product Downloads
Specification
Testing Report
Certificate
Product Accessories
No accessories for this product now！
