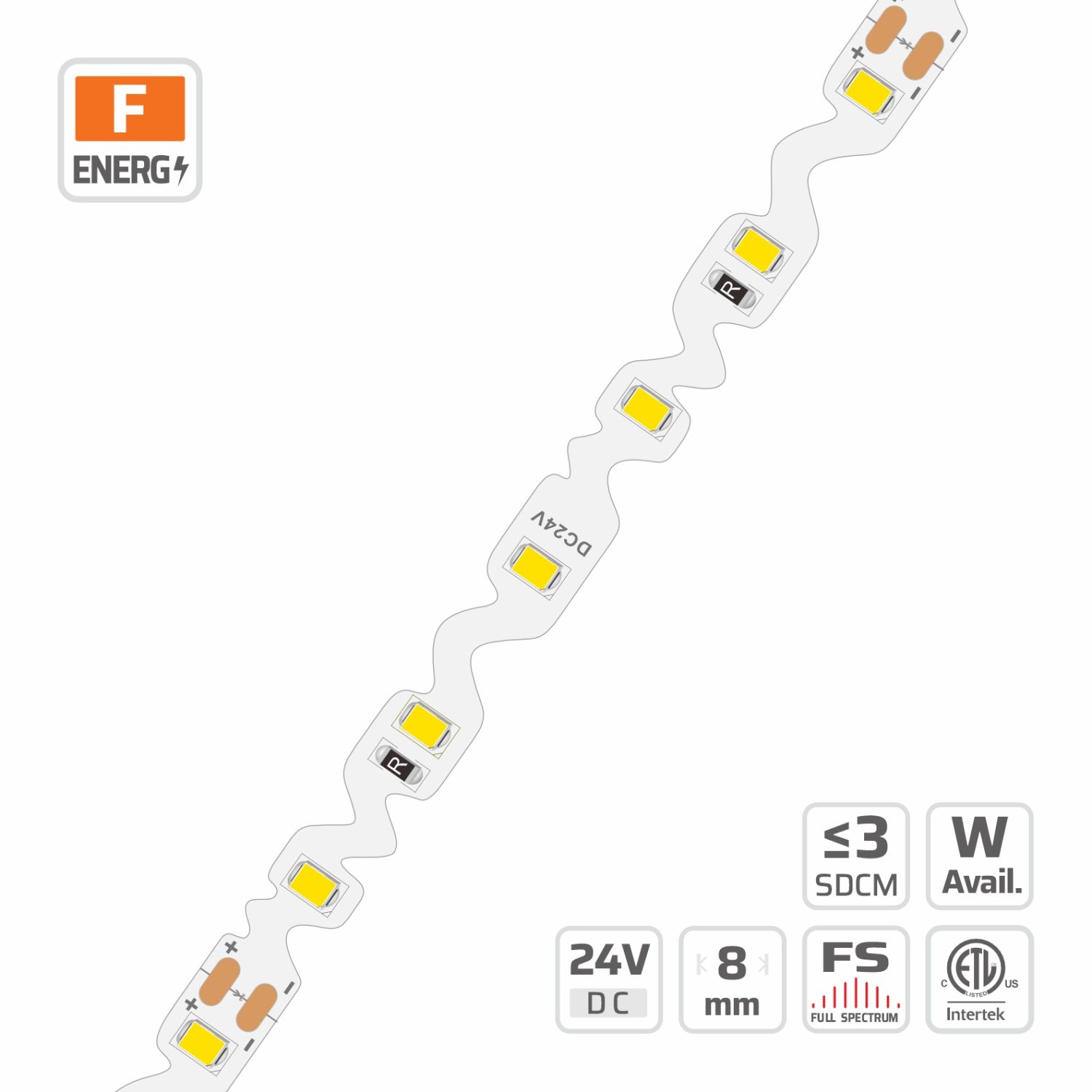

    8mm | 24V | 60LEDs | 12W | 100cut | #6323 | 2835 S-Bend LED Strip Light

    Adopt pure copper strong LED frame, 99.9% purity diameter> 1 mm pure golden wire encapsulation, can reduce the LED damage in different applications.

    Request A Quote
    Category:

    Technical Details

    Part No.

    DL-F28A30V24-6323-*
    SMD Type

    2835 SMD
    LED Qty

    60 LEDs/m
    Voltage

    DC 24V
    Power Option

    12W/m
    Lumen/m (max.)

    1110 lm/m @4000k
    Lumen/W (max.)

    95 lm/W @4000k
    Color

    White
    CRI

    Ra ≥80

    ,

    Ra ≥90

    ,

    Ra ≥95
    SDCM

    ≤3 Step 1Bin
    PCB Width

    8mm
    Beam Angle

    120°
    IP Process

    IP20

    ,

    IP53

    ,

    IP66
    Warranty

    5 years

    Related Specifications

    Length(max.): 5M(16.4′)/roll

    Cutting Unit: 6LEDs/100mm(3.937′′)

    LED Spacing: 16.6mm(0.653′′)

    LED Height: 0.9mm(0.035′′)

    Mounting: 3M tape

    Min. Bend: Φ60mm(2.362′′)

    Copper foil: 3oz

    Pure Gold wire: 99.99%

    On-off times: 10000（test times）

    Eye security:IEC 62471

    Certification:UL

    Certified:CE/RoHS/ETL

    EMC compliance:EN 55015

    Product Photo-electric Parameters

    Ra≥80

    Power CRI Color Color Temperature LM/m LM/W Energy Efficiency Class
    12W Ra≥80 SWW 1900K 840 72 G
    12W Ra≥80 SWW 2300K 895 76 G
    12W Ra≥80 WW 2700K 980 83 G
    12W Ra≥80 WW 3000K 1040 88 F
    12W Ra≥80 WW 3500K 1060 90 F
    12W Ra≥80 NW 4000K 1110 95 F
    12W Ra≥80 NW 5000K 1105 94 F
    12W Ra≥80 PW 6500K 1095 93 F

    Ra≥90

    Power CRI Color Color Temperature LM/m LM/W Energy Efficiency Class
    12W Ra≥90 SWW 1900K 765 65 G
    12W Ra≥90 SWW 2300K 840 71 G
    12W Ra≥90 WW 2700K 900 76 G
    12W Ra≥90 WW 3000K 965 82 G
    12W Ra≥90 WW 3500K 975 83 G
    12W Ra≥90 NW 4000K 1080 92 F
    12W Ra≥90 NW 5000K 1050 89 F
    12W Ra≥90 PW 6500K 1030 88 F

    Ra≥95

    Power CRI Color Color Temperature LM/m LM/W Energy Efficiency Class
    12W Ra≥95 WW 2700K 815 69 G
    12W Ra≥95 WW 3000K 870 74 G
    12W Ra≥95 WW 3500K 955 81 G
    12W Ra≥95 NW 4000K 970 83 G



    Product Downloads

    Specification

    DL-F28A30V24-8mm-AB-236M3-Specifications

    Testing Report

    DL-F28A30V24-8mm-AB-236M3-Testing-Report

    DL-F28A30V24-8mm-AB-236M3-IES

    Manual

    LED-Strip-User Manual.pdf

    WaterproofManual.pdf



    Certificate

    CE Certificate

    ROHS Certificate

    ETL Certificate

    FCC Certificate

    Product Accessories

    No accessories for this product now！
